NNG3V100B Specifications
View Full SpecificationsView Specifications

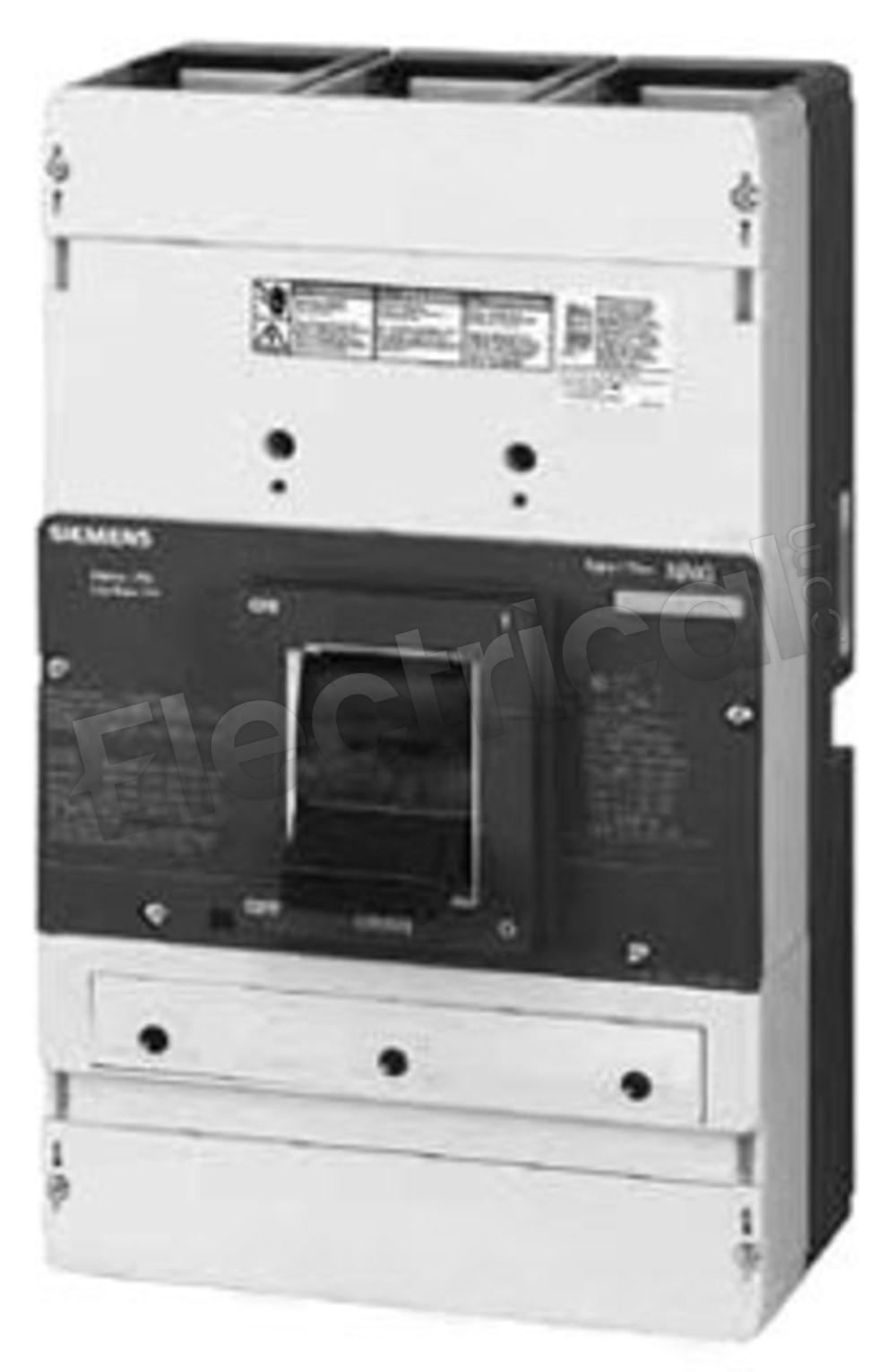

NNG3V100B, Siemens, VL Series, type NNG, 3P, 3PH, 1000A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LSIG - Long-Time Short-Time Instantaneous and Ground Fault trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 1000 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 1000 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Siemens and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NNG3V100B Specifications:
Part NumberNNG3V100B
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNNG
Weight64 lbs
Amperage1000
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSIG - Long-Time Short-Time Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeNG Frame
Phase3
Additional Information
