- Circuit Breaker /
- Molded Case /
- Siemens /

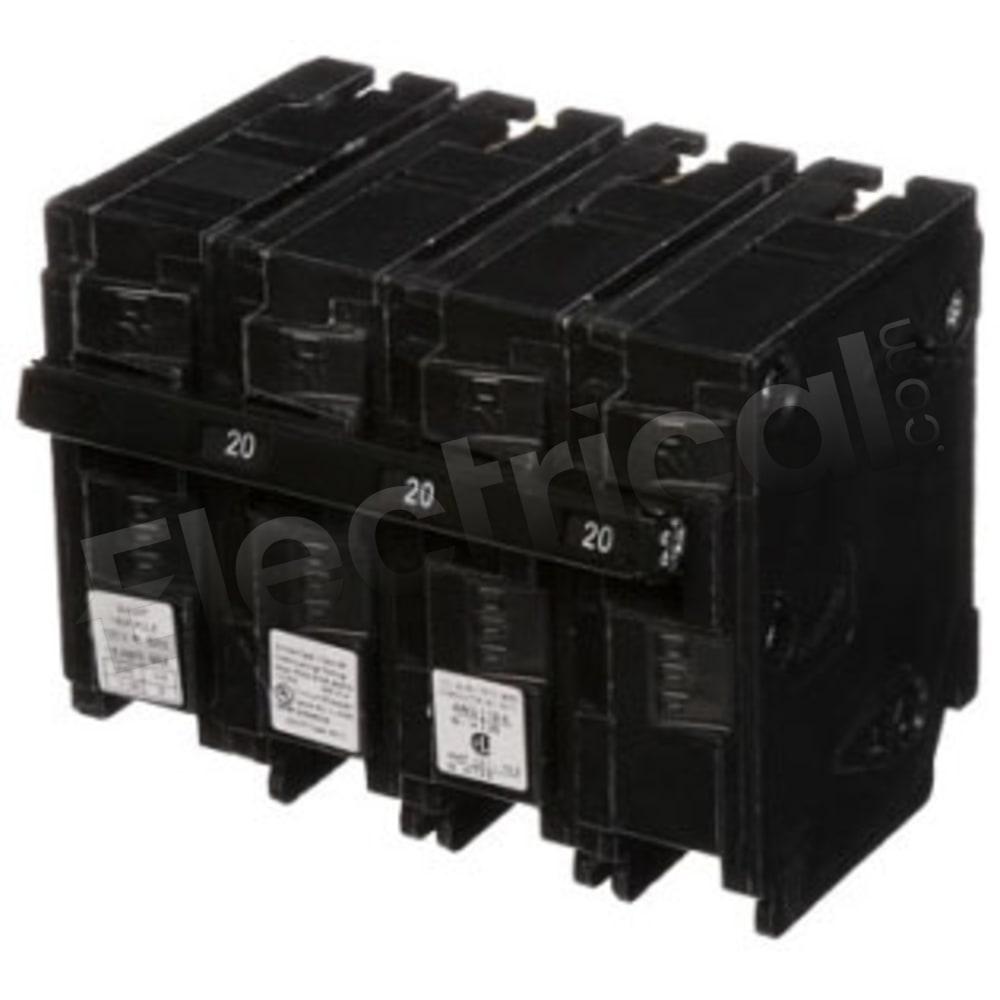

Q315H00S01
Q315H00S01
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
Q315H00S01 Specifications
View Full SpecificationsView Specifications
Q315H00S01, Siemens, Q Series, type QPH, 3P, 3PH, 15A, 240V, 22kA@240V, high interrupting capacity, with factory installed 120V shunt trip, Plug-In, Thermal Magnetic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | Q Series | Amperage | 15 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | Q Series | ||
| Amperage | 15 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
Q315H00S01 Specifications:
Part NumberQ315H00S01
Manufacturers
Sub-CategoryMolded Case
FamilyQ Series
TypeQPH
Weight1 lbs
Amperage15
Voltage240
Poles3
AIC Rating22kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase3
