Q33501
Q33501
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
Q33501 Specifications
View Full SpecificationsView Specifications

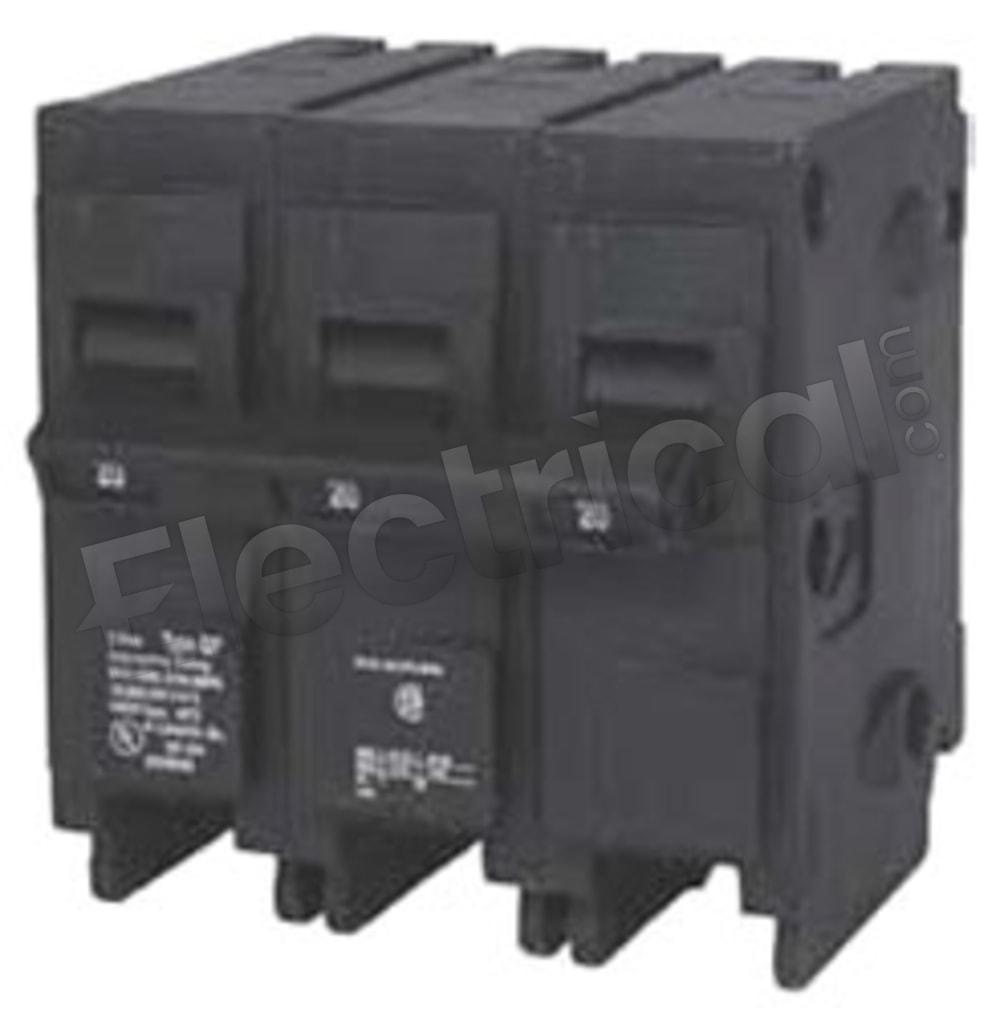

Q33501 Siemens Q Series, type QP, 3P, 3PH, 35A, 240V, 10kA@240V, standard interrupting capacity, with factory installed 120V auxiiary switch, Plug-In, Thermal Magnetic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | Q Series | Amperage | 35 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | Q Series | ||
| Amperage | 35 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
Q33501 Specifications:
Part NumberQ33501
Manufacturers
Sub-CategoryMolded Case
FamilyQ Series
TypeQP
UPC662643571660
Weight1.2 lbs
Amperage35
Voltage240
Poles3
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase3
