RMS-TSG-TZ

Siemens - Trip Units And Programmers

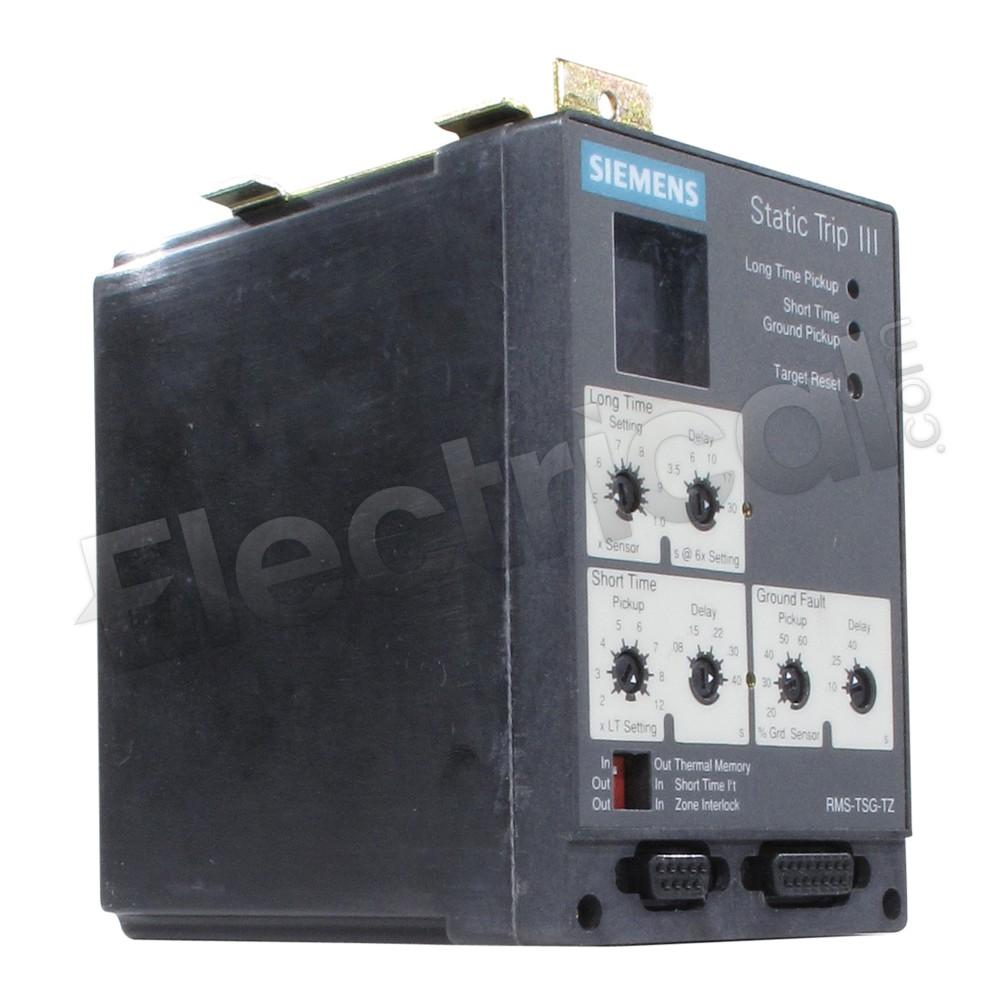

Siemens Trip Units And Programmers RMS-TSG-TZ

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

RMS-TSG-TZ Specifications

View Specifications

RMS-TSG-TZ, Siemens, Static Trip III, type RMS current sensing, programmable to any amperage requirement 150A-5000A, 600V, 3P, LCD display, LSG - Long-Time, Short-Time and Ground Fault trip functions, zone interlocking capability, suitable for use with type RL,RLE,RLI,RLF low voltage power circuit breakers

Manufacturer
Siemens
Subcategory
Trip Units And Programmers
Family
Static Trip III
Suit Frame
RL,RLE,RLI,RLF
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
RMS-TSG-TZ Specifications:
Part NumberRMS-TSG-TZ
Manufacturers
Siemens
Sub-CategoryTrip Units And Programmers
FamilyStatic Trip III
TypeRMS
Weight5 lbs
Suit FrameRL,RLE,RLI,RLF
Voltage600
ProtectionSolid State
Poles3
FunctionsLSG - Long-Time, Short-Time and Ground Fault
Amperage Min150
Amperage Max5000
