RXD63S200AL
RXD63S200AL
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
RXD63S200AL Specifications
View Full SpecificationsView Specifications

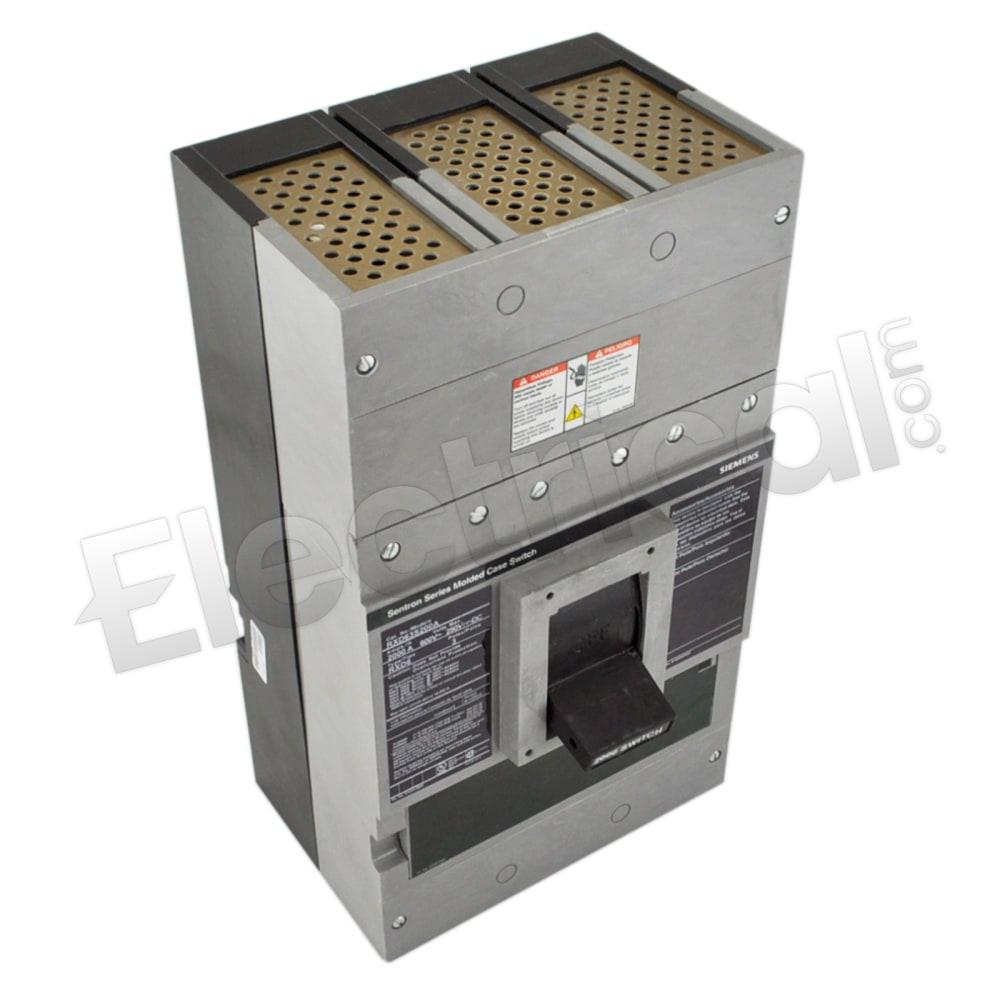

RXD63S200AL, Siemens, Sentron Series, type RXD, 3P, 3PH, 2000A, 600V, 50kA@480V, Feed-Thru, line & load side lug terminals, NA - No Overcurrent Protection, Non-Automatic switch, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | Sentron Series | Amperage | 2000 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | Sentron Series | ||
| Amperage | 2000 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
RXD63S200AL Specifications:
Part NumberRXD63S200AL
Manufacturers
Sub-CategoryMolded Case
FamilySentron Series
TypeRXD
Weight65 lbs
Amperage2000
Voltage600
Poles3
AIC Rating50kA@480V
FunctionsNA - No Overcurrent Protection
ProtectionNon-Automatic
ConnectionFeed-Thru
Frame TypeRD Frame
Phase3
