BGL26020

Square D - Molded Case

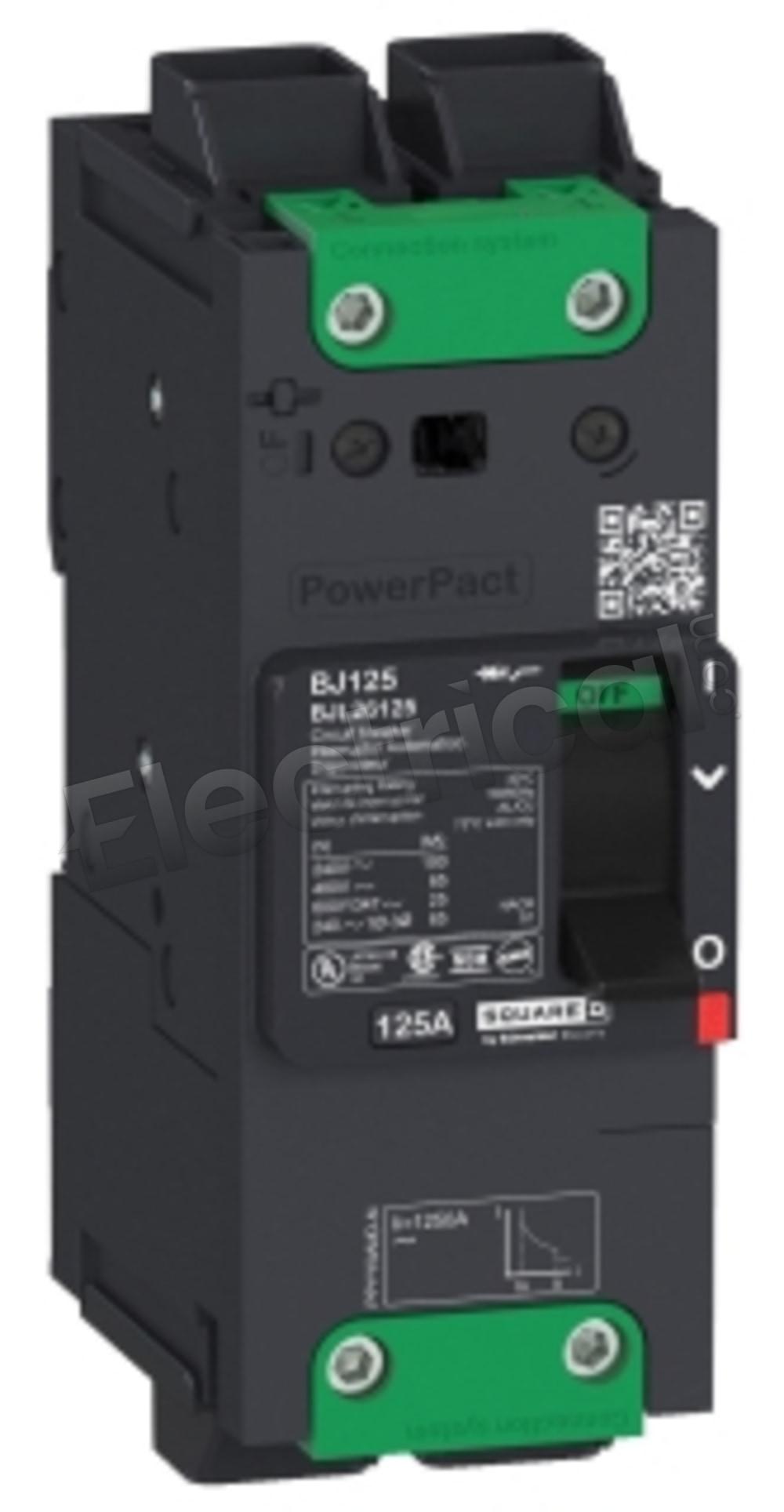

Square D Molded Case BGL26020

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

BGL26020 Specifications

View Specifications

BGL26020, Schneider Electric, Square D, PowerPact, type BGL, 1PH, 2P, 600Y/347Vac, 20A, 35kA@480V, Feed-Thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Square D
Subcategory
Molded Case
Family
PowerPact
Amperage
20
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
BGL26020 Specifications:
Part NumberBGL26020
Manufacturers
Schneider Electric, Square D
Sub-CategoryMolded Case
FamilyPowerPact
TypeBGL
UPC3606481154026
Weight2 lbs
Amperage20
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeB Frame
Phase1
