1. Circuit Breaker /
  2. Molded Case /
  3. Square D /

    4. BGL36050

BGL36050

Square D - Molded Case

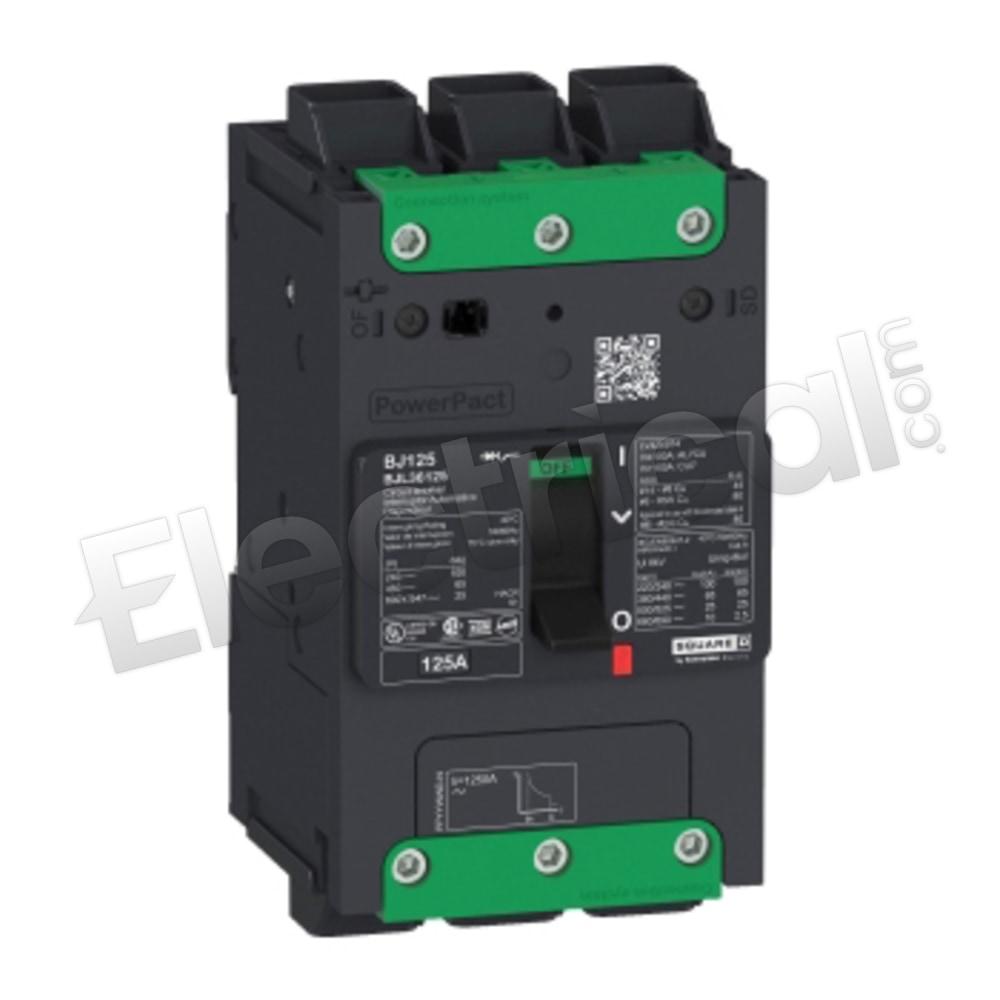

Square D Molded Case BGL36050

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

BGL36050 Specifications

View Specifications

BGL36050, Square D, Schneider Electric, PowerPact, type BGL, 3PH, 3P, 600Y/347Vac, 50A, 35kA@480V, with EverLink connectors, complete with non-interchangeable trip, trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Square D
Subcategory
Molded Case
Family
PowerPact
Amperage
50
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
BGL36050 Specifications:
Part NumberBGL36050
Manufacturers
Square D, Schneider Electric
Sub-CategoryMolded Case
FamilyPowerPact
TypeBGL
UPC3606481154101
Weight1.43 lbs
Amperage50
Voltage600
Poles3
AIC Rating35kA@480V
ProtectionThermal Magnetic
Frame TypeB Frame
Phase3
