EHB34080AS
EHB34080AS
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
EHB34080AS Specifications
View Full SpecificationsView Specifications

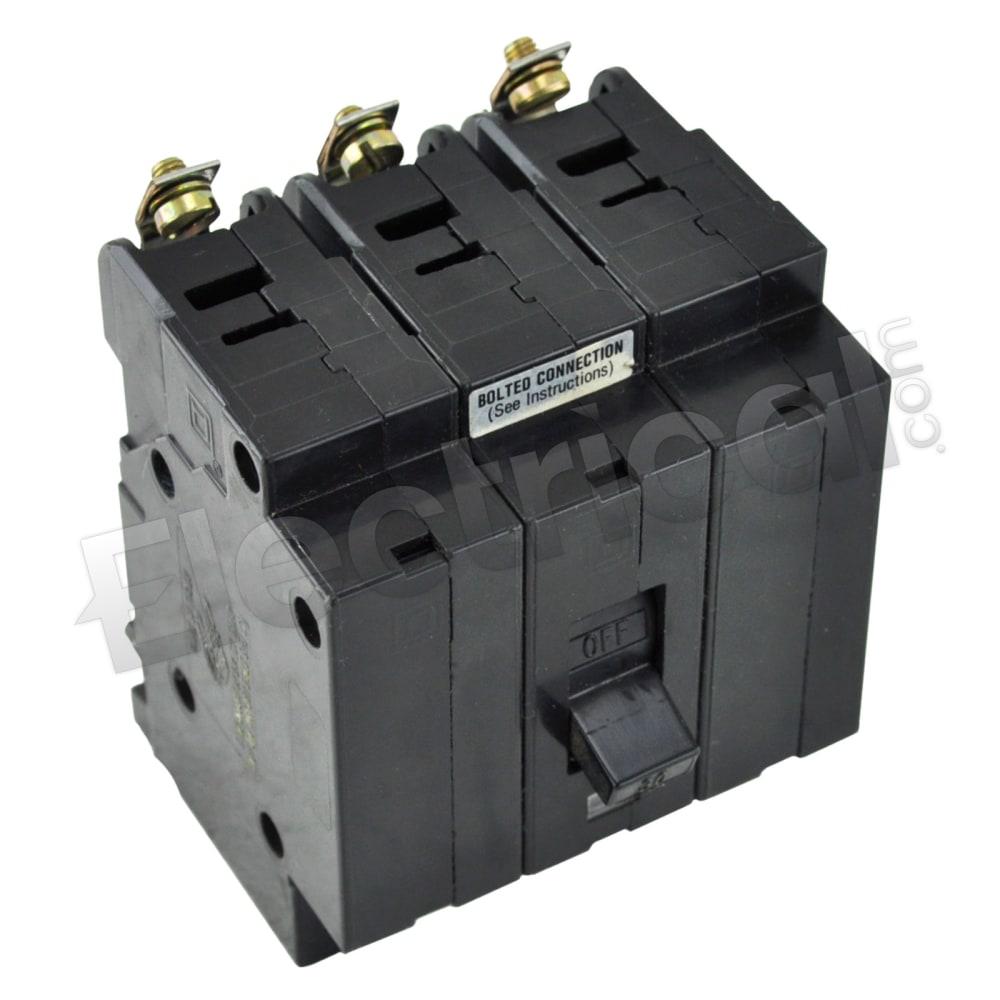

EHB34080AS, Square D, EHB Series, type EHB, 3P, 3PH, 80A, 277/480V, 14kA@277V, standard interrupting capacity, 40°C, Bolt-On, Thermal Magnetic, molded case circuit breakers, with Powerlink AS remote controlled
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | EHB Series | Amperage | 80 |
| Voltage | 480 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | EHB Series | ||
| Amperage | 80 | ||
| Voltage | 480 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
EHB34080AS Specifications:
Part NumberEHB34080AS
Manufacturers
Sub-CategoryMolded Case
FamilyEHB Series
TypeEHB
Weight1 lbs
Amperage80
Voltage480
Poles3
AIC Rating14kA@277V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
