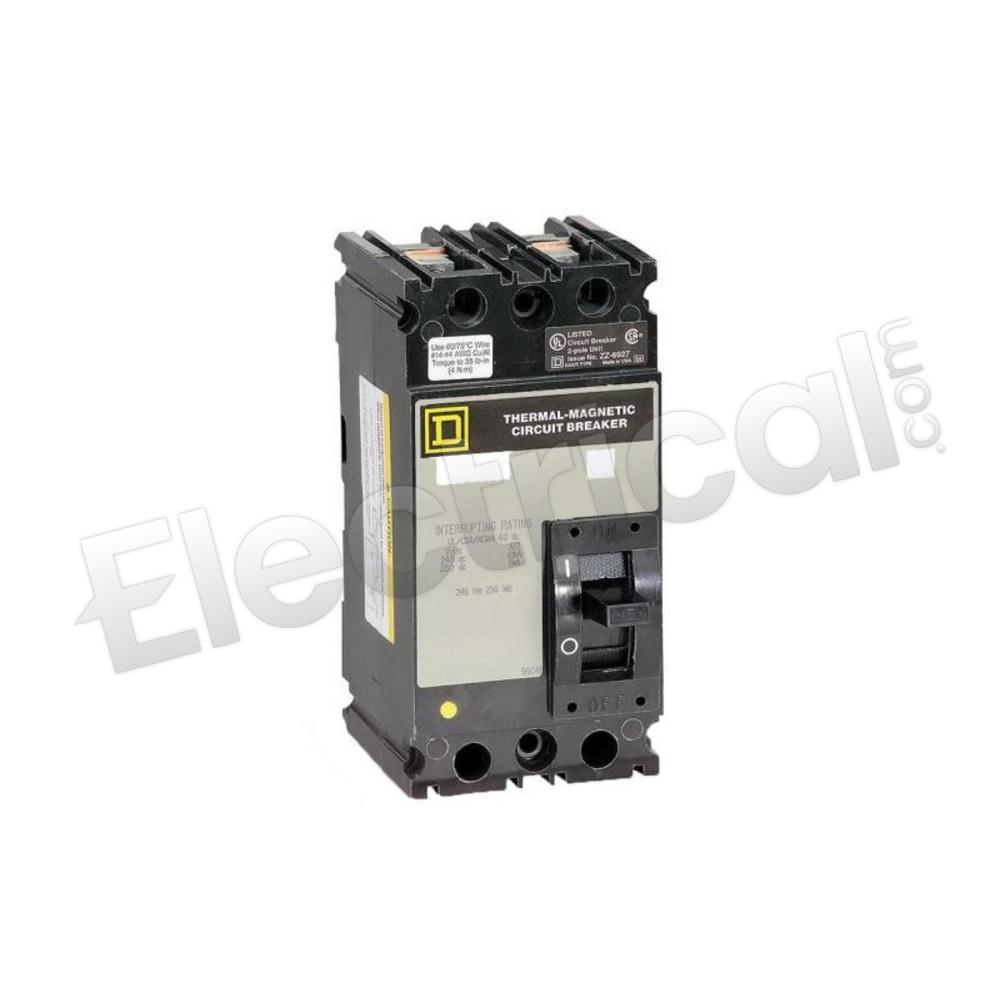

FAL3603015MV
FAL3603015MV
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FAL3603015MV Specifications
View Full SpecificationsView Specifications
FAL3603015MV, Square D, FAL Series, type FAL, 3P, 3PH, 30A, 600V, 18kA@480V, UL listed, standard interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only and line & load side lug terminals, Mag-Gard MCP, motor circuit protectors, magnetic range 100-350A, Magnetic Only, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | FAL Series | Amperage | 30 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | FAL Series | ||
| Amperage | 30 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FAL3603015MV Specifications:
Part NumberFAL3603015MV
Manufacturers
Sub-CategoryMolded Case
FamilyFAL Series
TypeFAL
Weight5 lbs
Amperage30
Voltage600
Poles3
AIC Rating18kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
