- Circuit Breaker /
- Molded Case /
- Square D /
FH16100C
FH16100C
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FH16100C Specifications
View Full SpecificationsView Specifications

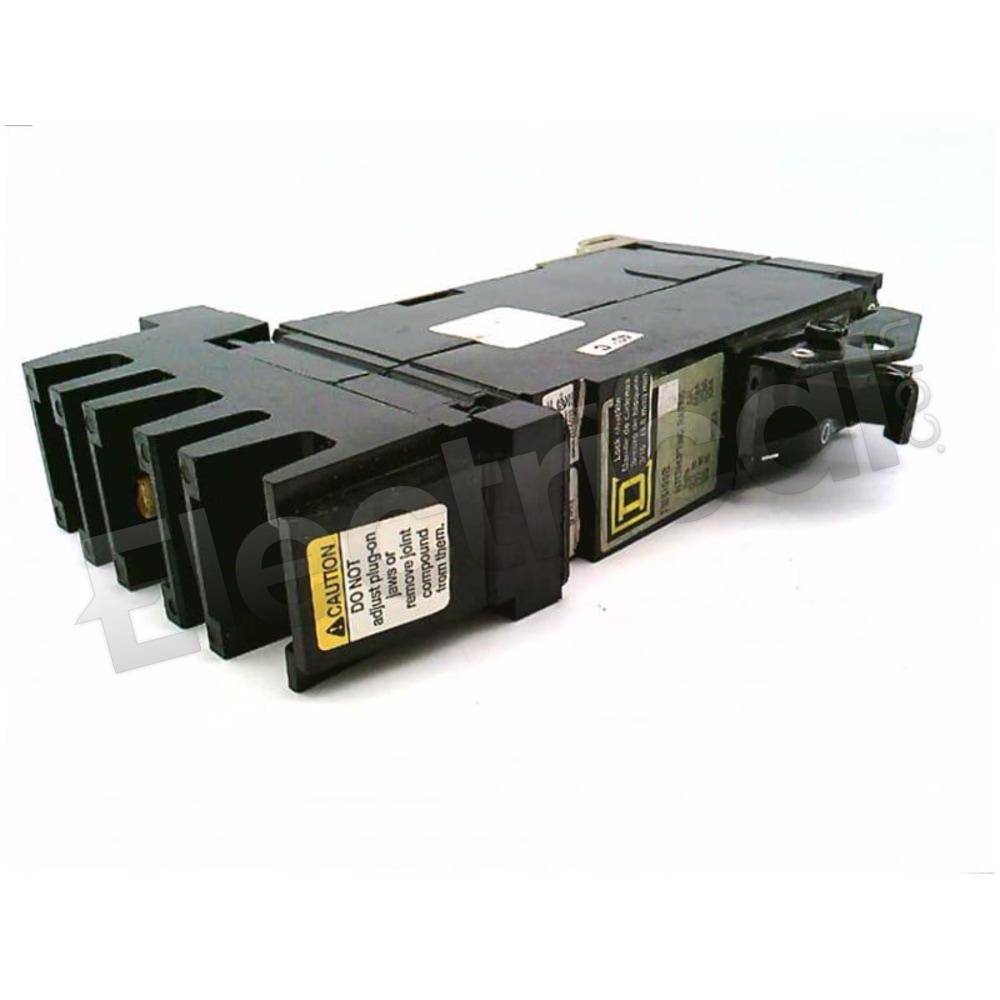

FH16100C, Square D, I-Line, type FH, 1P, C phase circuit configuration, 1PH, 100A, 277V, 25kA@240V, standard interrupting rating, 40°C, I-Line Style Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | I-Line | Amperage | 100 |
| Voltage | 277 | Poles | 1 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | I-Line | ||
| Amperage | 100 | ||
| Voltage | 277 | ||
| Poles | 1 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FH16100C Specifications:
Part NumberFH16100C
Manufacturers
Sub-CategoryMolded Case
FamilyI-Line
TypeFH
UPC00785901238591
Weight2 lbs
Amperage100
Voltage277
Poles1
AIC Rating25kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionI-Line Style Plug-In
Frame TypeF Frame
Phase1
