FHL36000M

Square D - Molded Case

|

1 Reviews

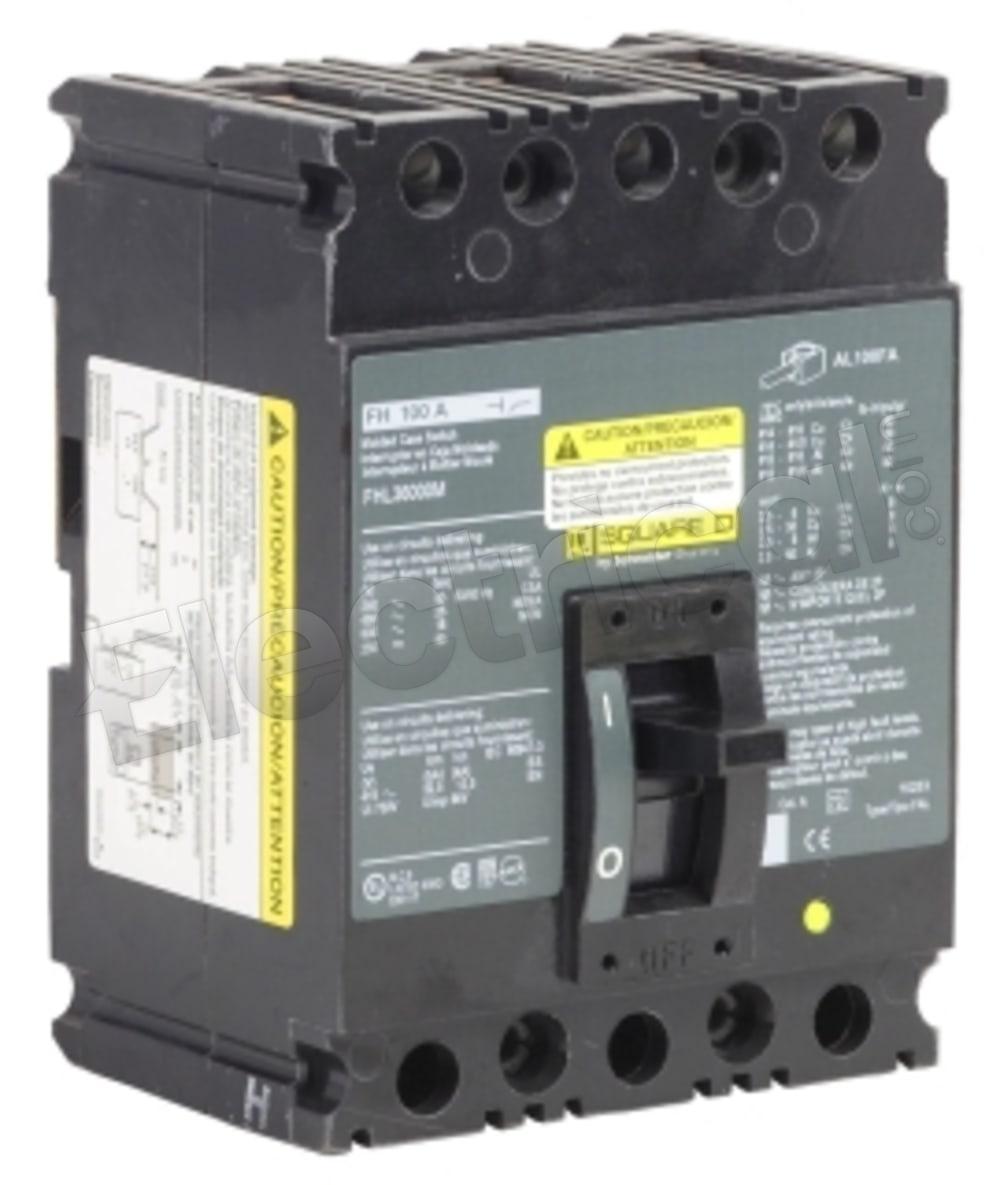

Square D Molded Case FHL36000M

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FHL36000M Specifications

View Specifications

FHL36000M, Square D, FHL Series, type FHL, 3P, 3PH, 100A, 600V, 25kA@480V, high interrupting capacity, Feed-Thru, I - Instantaneous protection only, complete with line & load side lug terminals, Magnetic Only automatic molded case switch, molded caseThis product has been discontinued by the manufacturer. Recommended replacement is HGL36000S15.

Manufacturer
Square D
Subcategory
Molded Case
Family
FHL Series
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FHL36000M Specifications:
Part NumberFHL36000M
Manufacturers
Square D
Sub-CategoryMolded Case
FamilyFHL Series
TypeFHL
UPC785901255581
Weight5 lbs
Amperage100
Voltage600
Poles3
AIC Rating25kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
