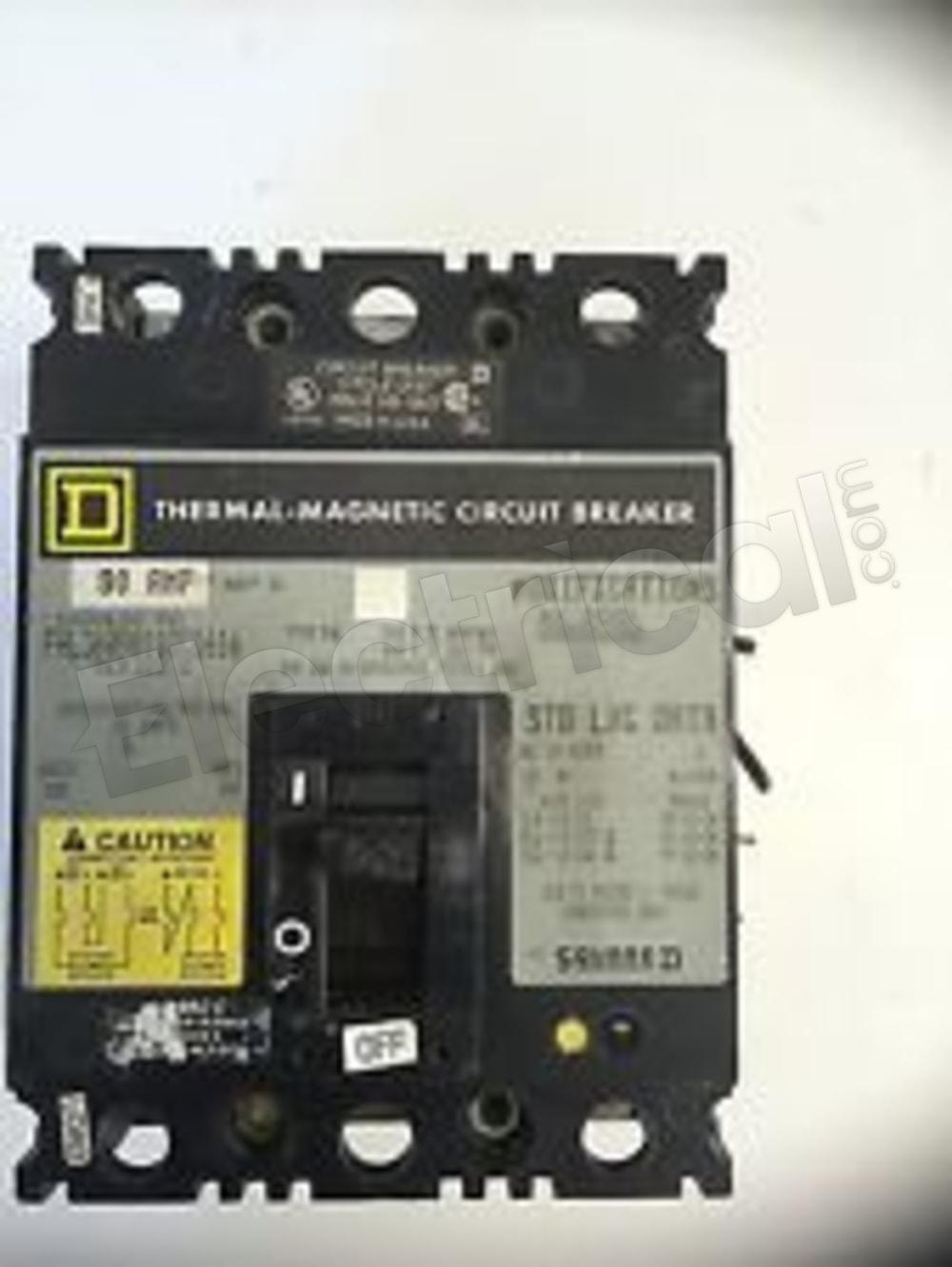

FHL3609016DC1616
FHL3609016DC1616
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FHL3609016DC1616 Specifications
View Full SpecificationsView Specifications
FHL3609016DC1616, Square D, FHL Series, type FHL, 3P, 3PH, 50A, 600Vdc, DC rated, 20kA@500VDC, standard interrupting capacity, Feed-Thru, complete with factory installed 24V UVR, undervoltage release and 10A auxiliary switch, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, magnetic trip range 150-580A, Thermal Magnetic, DC molded case circuit breakers; these breakers are obsolete, however we do still stock them
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | FHL Series | Amperage | 50 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | FHL Series | ||
| Amperage | 50 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
