FY14020C
FY14020C
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FY14020C Specifications
View Full SpecificationsView Specifications

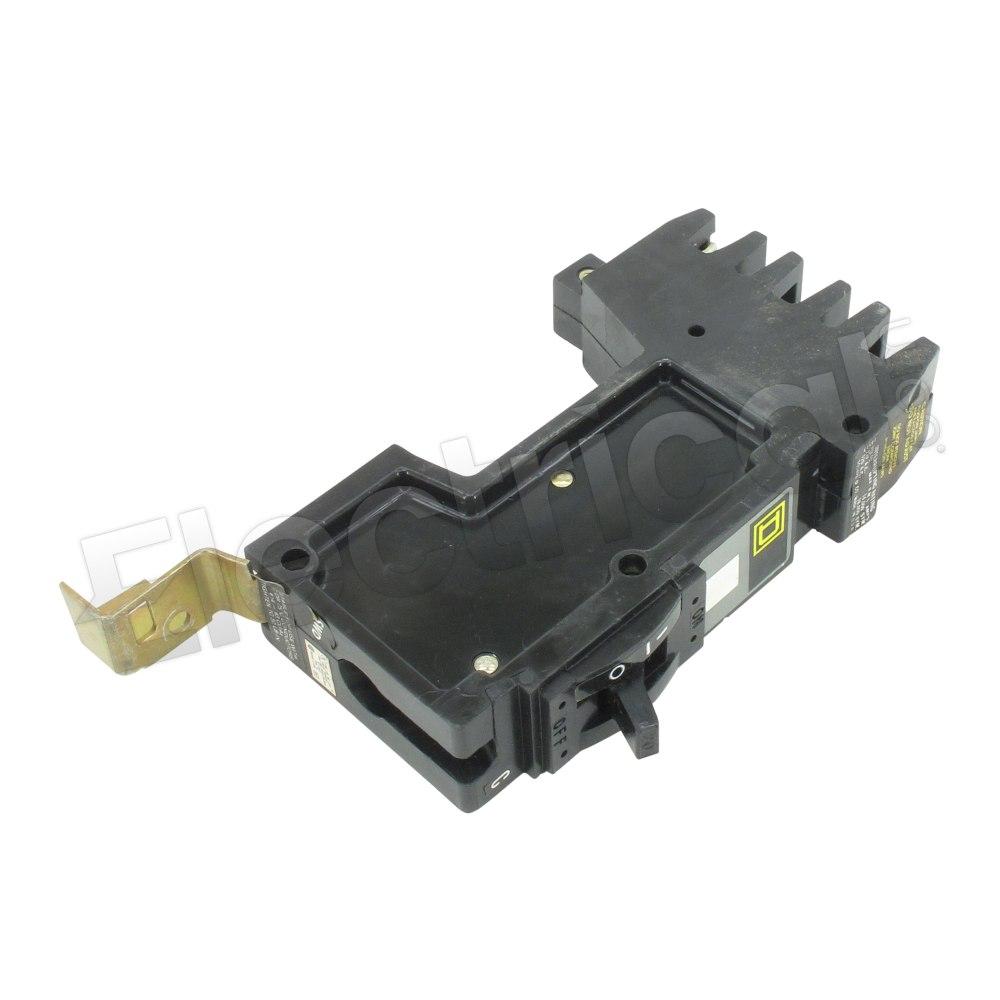

FY14020C, Square D circuit breaker molded case I-Line, type FY, F Frame, 1PH, 1P, 277V, 20A, 14kA@240V, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | I-Line | Amperage | 20 |
| Voltage | 277 | Poles | 1 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | I-Line | ||
| Amperage | 20 | ||
| Voltage | 277 | ||
| Poles | 1 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FY14020C Specifications:
Part NumberFY14020C
Manufacturers
Sub-CategoryMolded Case
Other NamesFY-14020-C, FY14020-C
FamilyI-Line
TypeFY
Weight2 lbs
Amperage20
Voltage277
Poles1
AIC Rating14kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionI-Line Style Plug-In
Frame TypeF Frame
Phase1
