HOMT2020250
HOMT2020250
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HOMT2020250 Specifications
View Full SpecificationsView Specifications

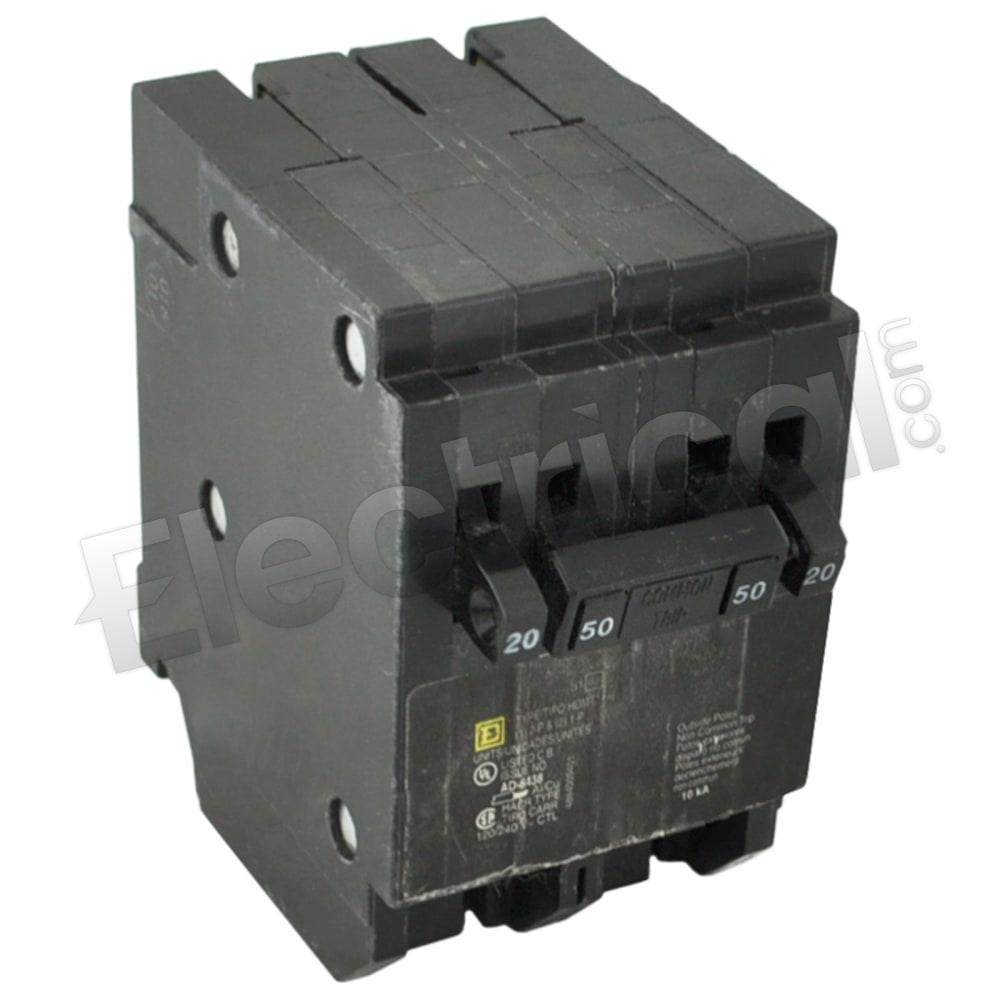

HOMT2020250, Square D, Homeline, type HOMT, 4P, 1PH, 50A, 240V, 10kA@240V, quad tandem, 1P-20A/20A & 2P- 50A, standard interrupting capacity, 40°C, Plug-In, Thermal Magnetic molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | Homeline | Amperage | 50 |
| Voltage | 240 | Poles | 4 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | Homeline | ||
| Amperage | 50 | ||
| Voltage | 240 | ||
| Poles | 4 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HOMT2020250 Specifications:
Part NumberHOMT2020250
Manufacturers
Sub-CategoryMolded Case
FamilyHomeline
TypeHOMT
UPC785901377054
Weight1 lbs
Amperage50
Voltage240
Poles4
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
