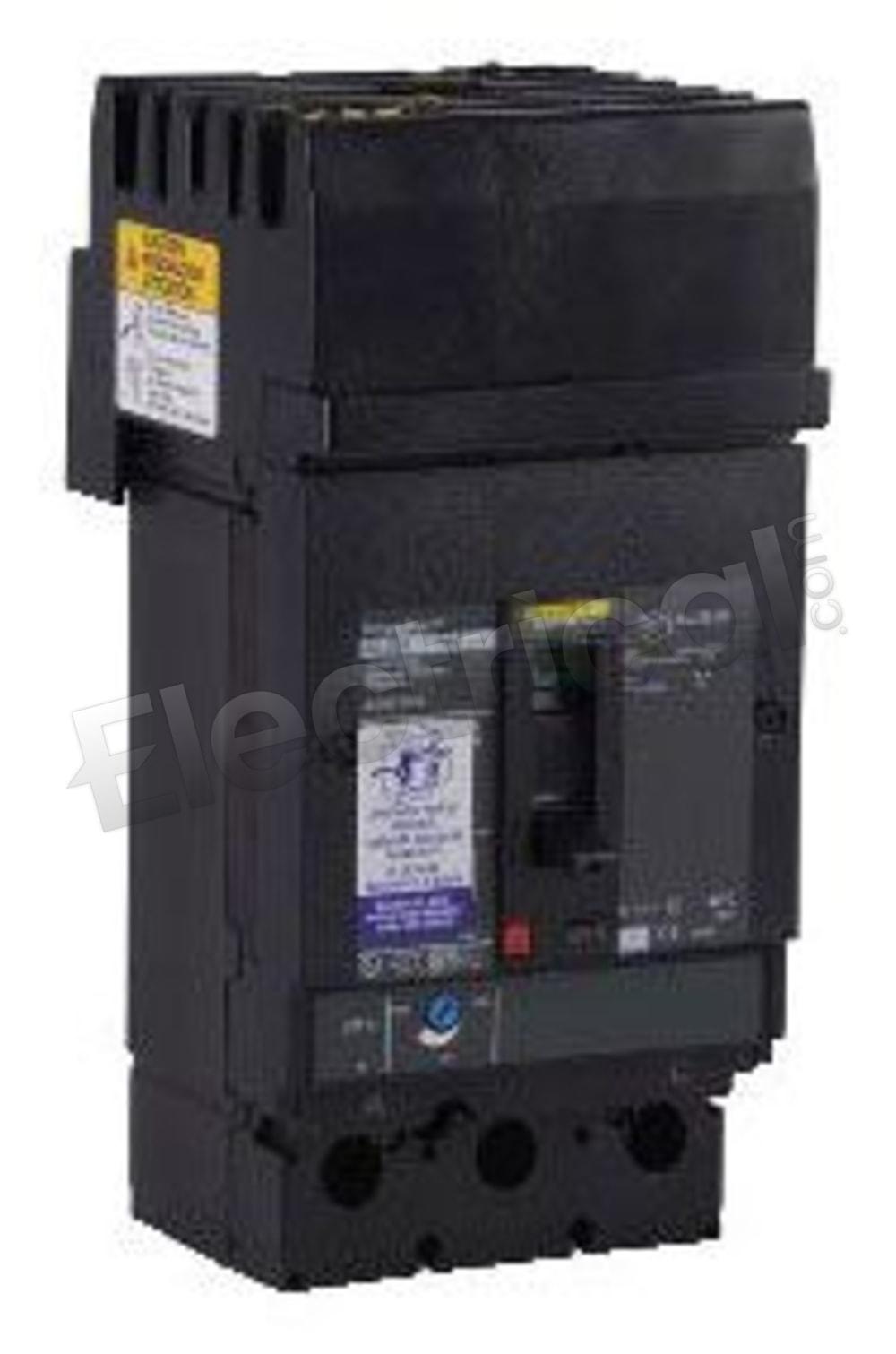

JDA36225SA
JDA36225SA
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
JDA36225SA Specifications
View Full SpecificationsView Specifications
JDA36225SA, Square D, PowerPact, type JDA, 3P, ABC phase connection, 3PH, 225A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, complete with 110-130Vac shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PowerPact | Amperage | 225 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PowerPact | ||
| Amperage | 225 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
JDA36225SA Specifications:
Part NumberJDA36225SA
Manufacturers
Sub-CategoryMolded Case
FamilyPowerPact
TypeJDA
UPC785901835721
Weight2.27 lbs
Amperage225
Voltage600
Poles3
AIC Rating18kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionI-Line Style Plug-In
Frame TypeJ Frame
Phase3
