JGL37100D81

Square D - Molded Case

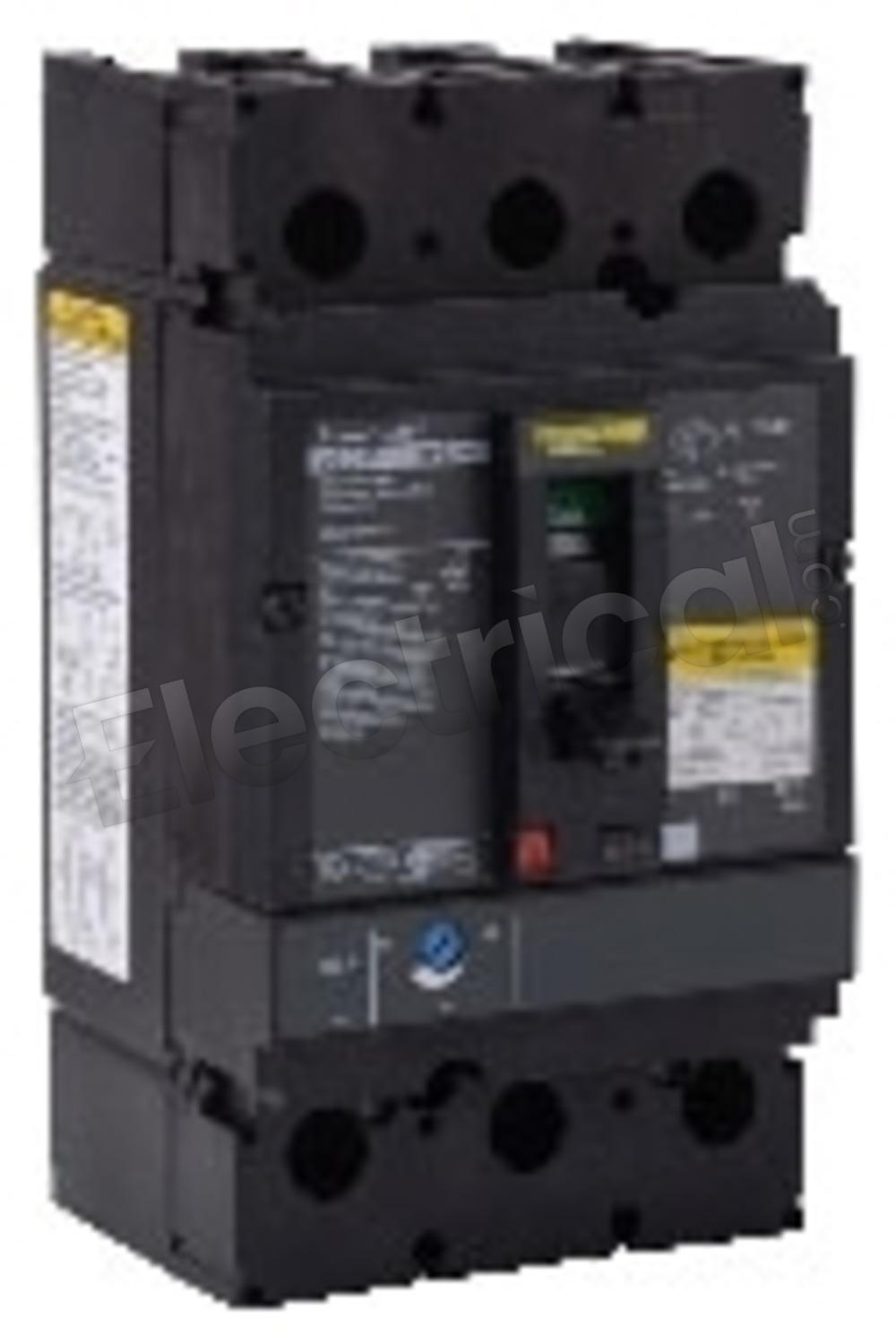

Square D Molded Case JGL37100D81

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

JGL37100D81 Specifications

View Specifications

JGL37100D81, Schneider Electric, Square D, PowerPact, type JGL, 3P, 3PH, 100A, 600Vdc, DC rated, 20kA@500VDC, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, magnetic trip range 400-600A, Thermal Magnetic, DC molded case circuit breakers

Manufacturer
Square D
Subcategory
Molded Case
Family
PowerPact
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
JGL37100D81 Specifications:
Part NumberJGL37100D81
Manufacturers
Schneider Electric, Square D
Sub-CategoryMolded Case
FamilyPowerPact
TypeJGL
UPC785901583332
Weight2.27 lbs
Amperage100
Voltage600
Poles3
AIC Rating20kA@500VDC
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeJ Frame
Phase3
