JGL37150D81

Square D - Molded Case

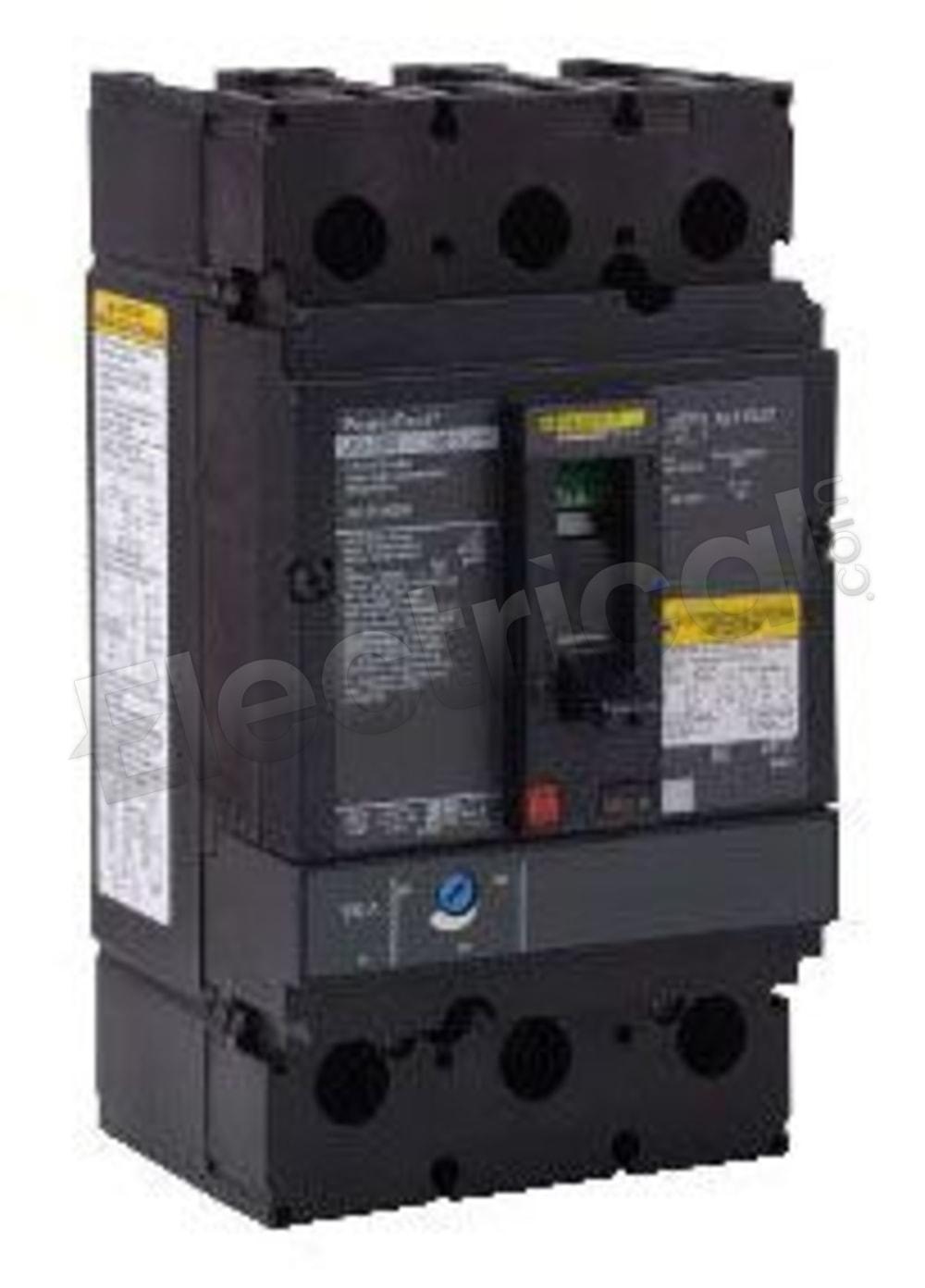

Square D Molded Case JGL37150D81

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

JGL37150D81 Specifications

View Specifications

JGL37150D81, Square D, Schneider Electric, PowerPact, type JGL, 3P, 3PH, 150A, 600Vdc, DC rated, 20kA@500VDC, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, magnetic trip range 350-600A, Thermal Magnetic, DC molded case circuit breakers

Manufacturer
Square D
Subcategory
Molded Case
Family
PowerPact
Amperage
150
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
JGL37150D81 Specifications:
Part NumberJGL37150D81
Manufacturers
Square D, Schneider Electric
Sub-CategoryMolded Case
FamilyPowerPact
TypeJGL
UPC785901956228
Weight2.27 lbs
Amperage150
Voltage600
Poles3
AIC Rating20kA@500VDC
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeJ Frame
Phase3
