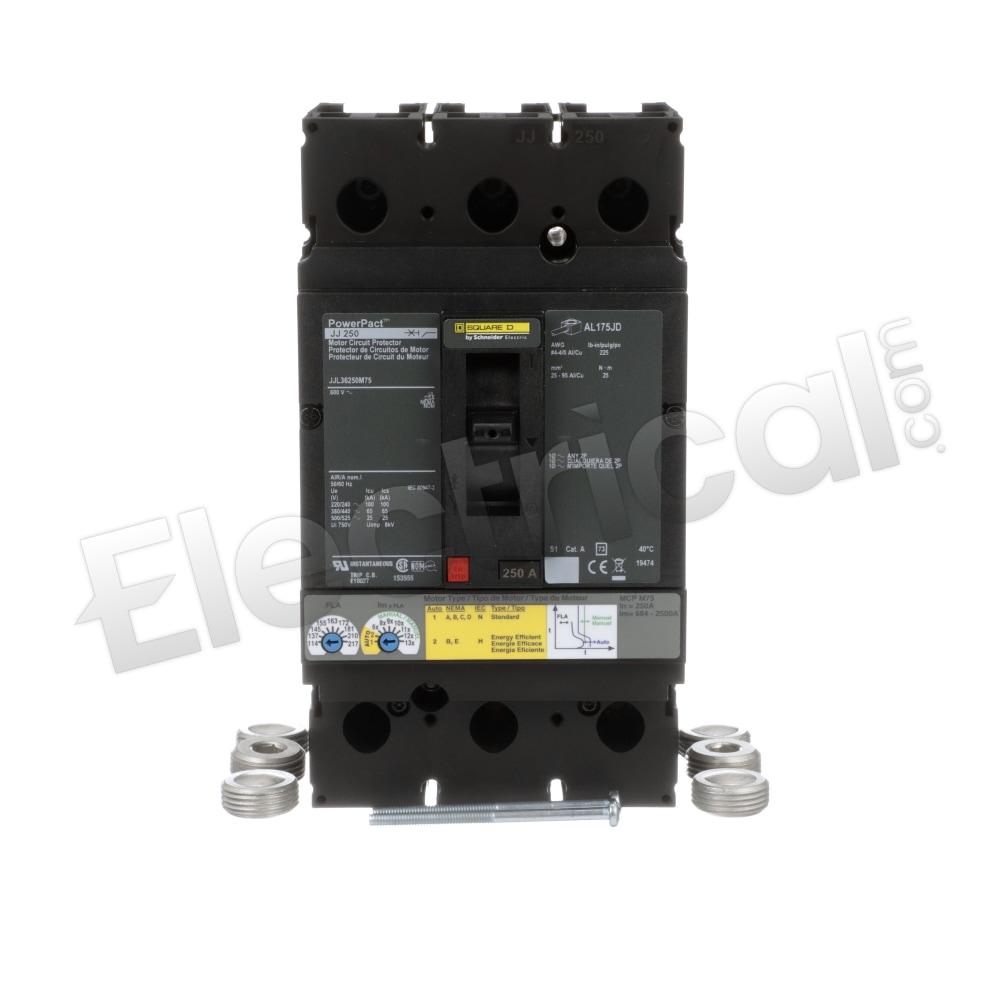

JJL36250M75 Square D 250A 3P PowerPact Molded Case Circuit Breaker

JJL36250M75

Square D - Molded Case

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

JJL36250M75 Specifications

View Full SpecificationsView Specifications

JJL36250M75, Square D, Schneider Electric, PowerPact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, complete with I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 684-2500A, Magnetic Only, molded case circuit breakers

Manufacturer	Square D	Subcategory	Molded Case
Family	PowerPact	Amperage	250
Voltage	600	Poles	3
Manufacturer	Square D
Subcategory	Molded Case
Family	PowerPact
Amperage	250
Voltage	600
Poles	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

JJL36250M75 Specifications:

Part NumberJJL36250M75

Manufacturers

Square D, Schneider Electric

Sub-CategoryMolded Case

FamilyPowerPact

TypeJJL

UPC785901541134

Weight2.32 lbs

Amperage250

Voltage600

Poles3
