KAL26200WB8041
KAL26200WB8041
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
KAL26200WB8041 Specifications
View Full SpecificationsView Specifications

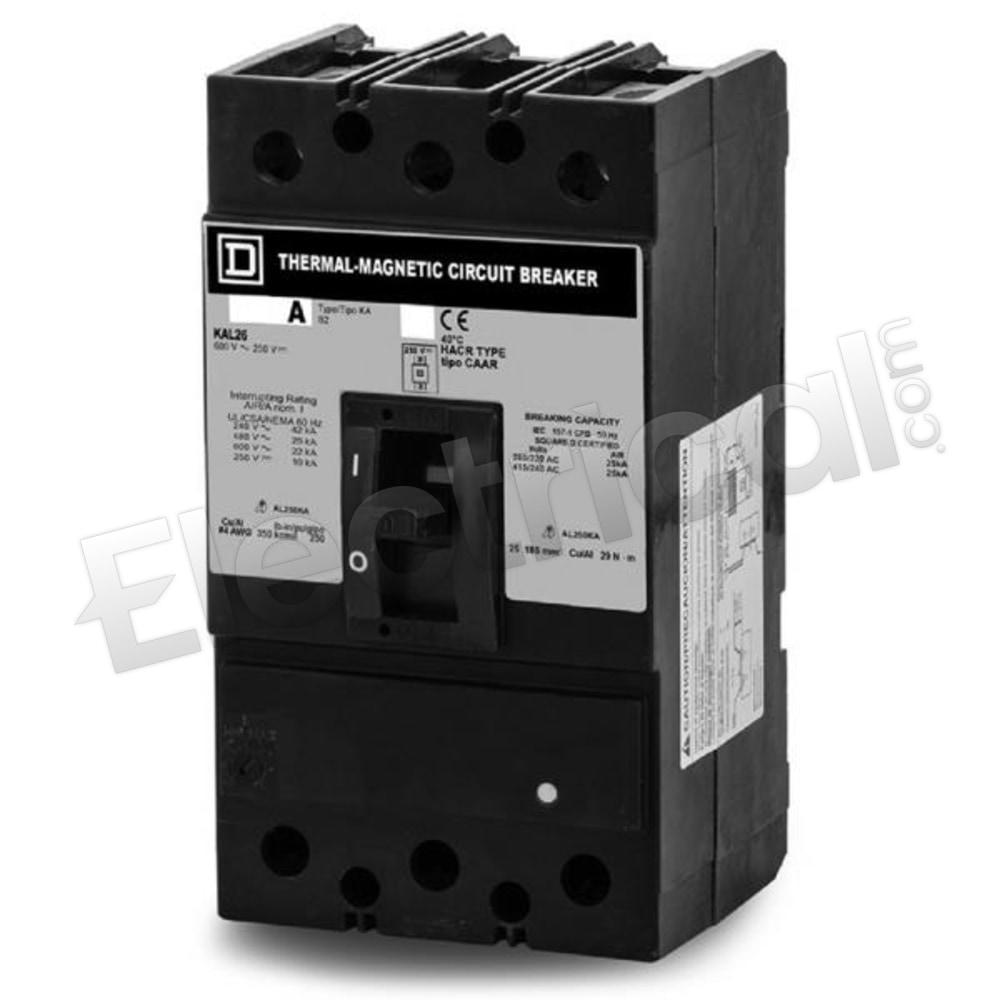

KAL26200WB8041, Square D, KAL Series, type KAL, 2P, 1PH, 200A, 600V, 25kA@480V, standard interrupting capacity, Feed-Thru, complete with walking beam mechanical interlock, LI - Long-Time and Instantaneous trip functions and tapped control terminal lugs, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | KAL Series | Amperage | 200 |
| Voltage | 600 | Poles | 2 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | KAL Series | ||
| Amperage | 200 | ||
| Voltage | 600 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
KAL26200WB8041 Specifications:
Part NumberKAL26200WB8041
Manufacturers
Sub-CategoryMolded Case
Other NamesKAL26200WB-8041
FamilyKAL Series
TypeKAL
Weight8 lbs
Amperage200
Voltage600
Poles2
AIC Rating25kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeK Frame
Phase1
