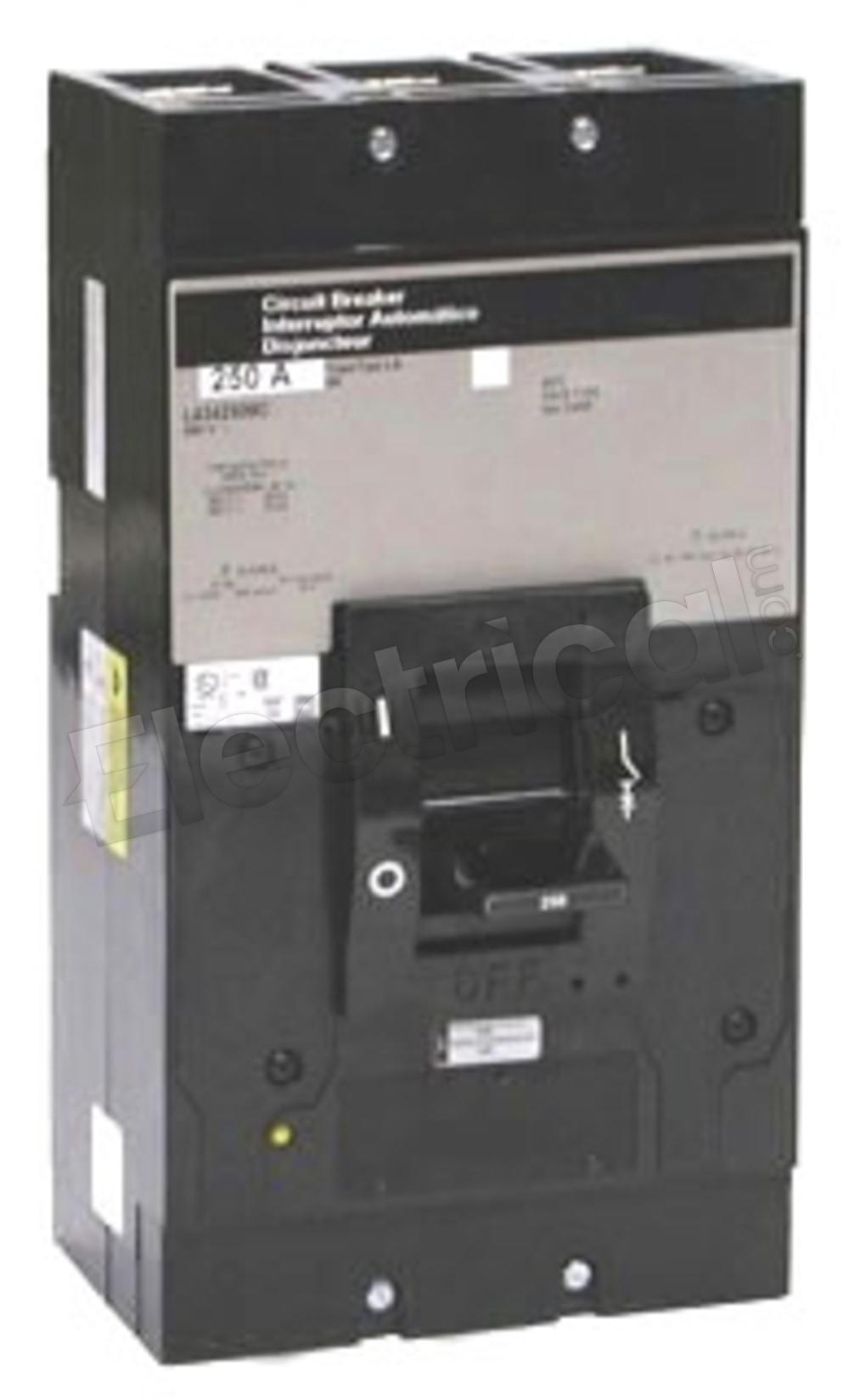

LAB36350
LAB36350
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LAB36350 Specifications
View Full SpecificationsView Specifications
LAB36350, Square D, I-Line, type LAB, 3P, 3PH, 225A, 600V, 30kA@480V, standard interrupting capacity, I-Line Style Plug-In, with bolt tighten feature, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | I-Line | Amperage | 225 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | I-Line | ||
| Amperage | 225 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LAB36350 Specifications:
Part NumberLAB36350
Manufacturers
Sub-CategoryMolded Case
FamilyI-Line
TypeLAB
Weight20 lbs
Amperage225
Voltage600
Poles3
AIC Rating30kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionI-Line Style Plug-In
Frame TypeL Frame
Phase3
