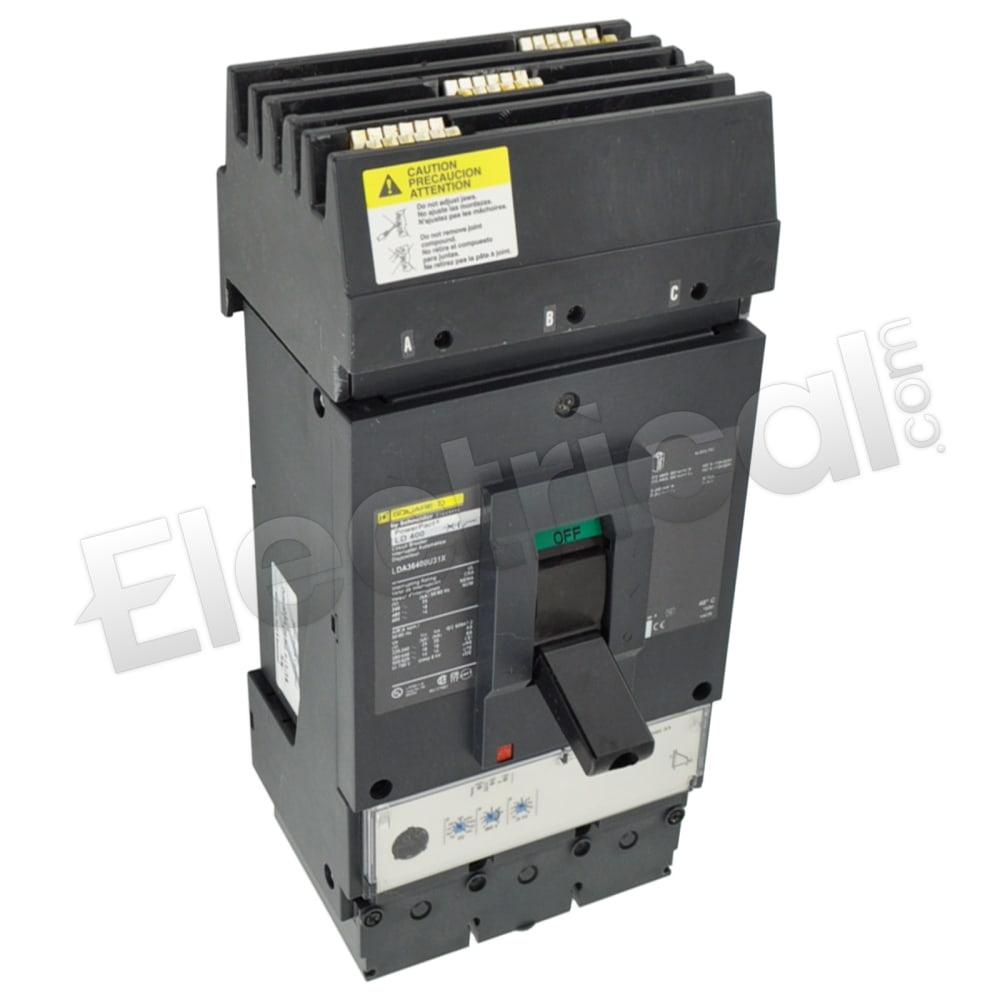

LLA36600CU53X
LLA36600CU53X
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LLA36600CU53X Specifications
View Full SpecificationsView Specifications
LLA36600CU53X, Schneider Electric, Square D, PowerPact, type LLA, 3P, 3PH, 600A, 600V, 100kA@480V, UL listed, current limiting, I-Line Style Plug-In, 100% rated, complete with non-interchangeable micrologic energy 5.3E trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PowerPact | Amperage | 600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PowerPact | ||
| Amperage | 600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LLA36600CU53X Specifications:
Part NumberLLA36600CU53X
Manufacturers
Sub-CategoryMolded Case
FamilyPowerPact
TypeLLA
Weight20 lbs
Amperage600
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionI-Line Style Plug-In
Frame TypeL Frame
Phase3
