- Circuit Breaker /
- Molded Case /
- Square D /

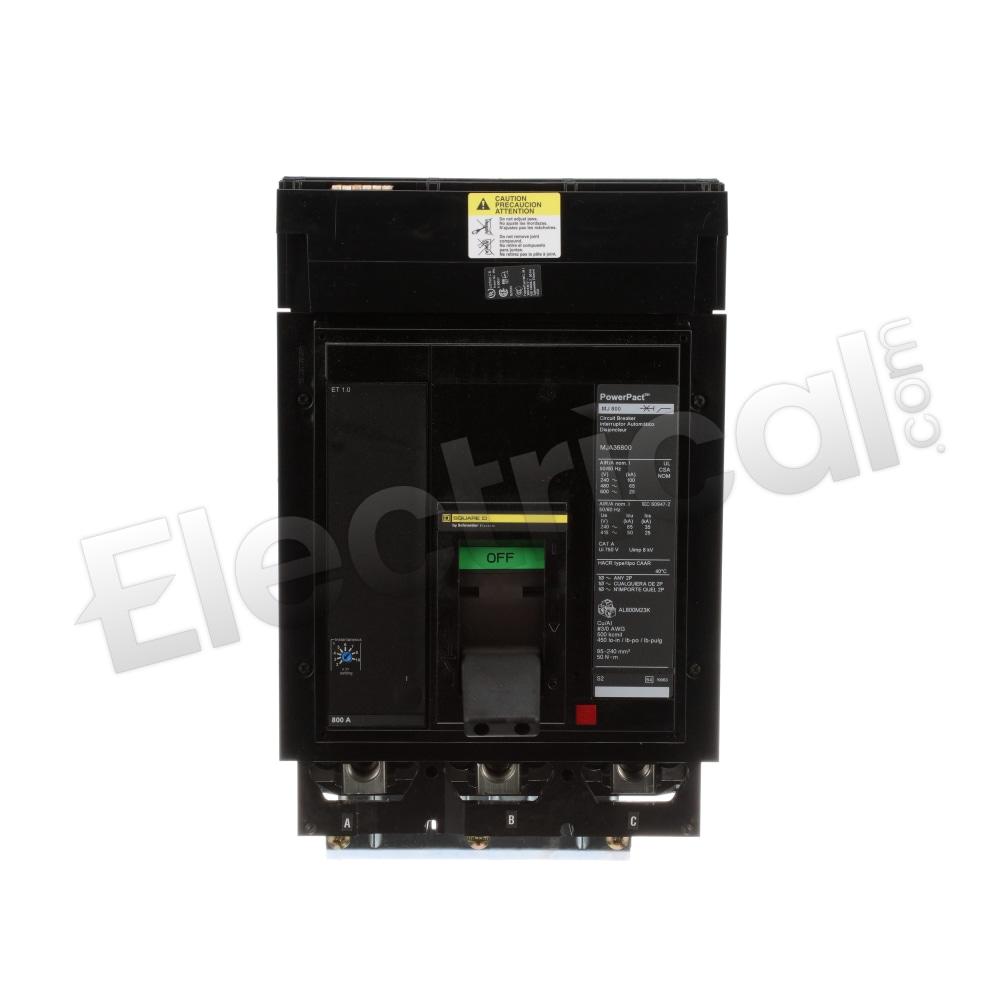

MJA36800E10
MJA36800E10
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
MJA36800E10 Specifications
View Full SpecificationsView Specifications
MJA36800E10, Square D, Schneider Electric, PowerPact, type MJA, 3P, ABC phase circuit configuration, 3PH, 800A, 600V, , UL listed, current limiting, I-Line Style Plug-In, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, adjustable amperage option allowing trip setting changes between 300A to 800A using a selector switch.
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PowerPact | Amperage | 800 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PowerPact | ||
| Amperage | 800 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
