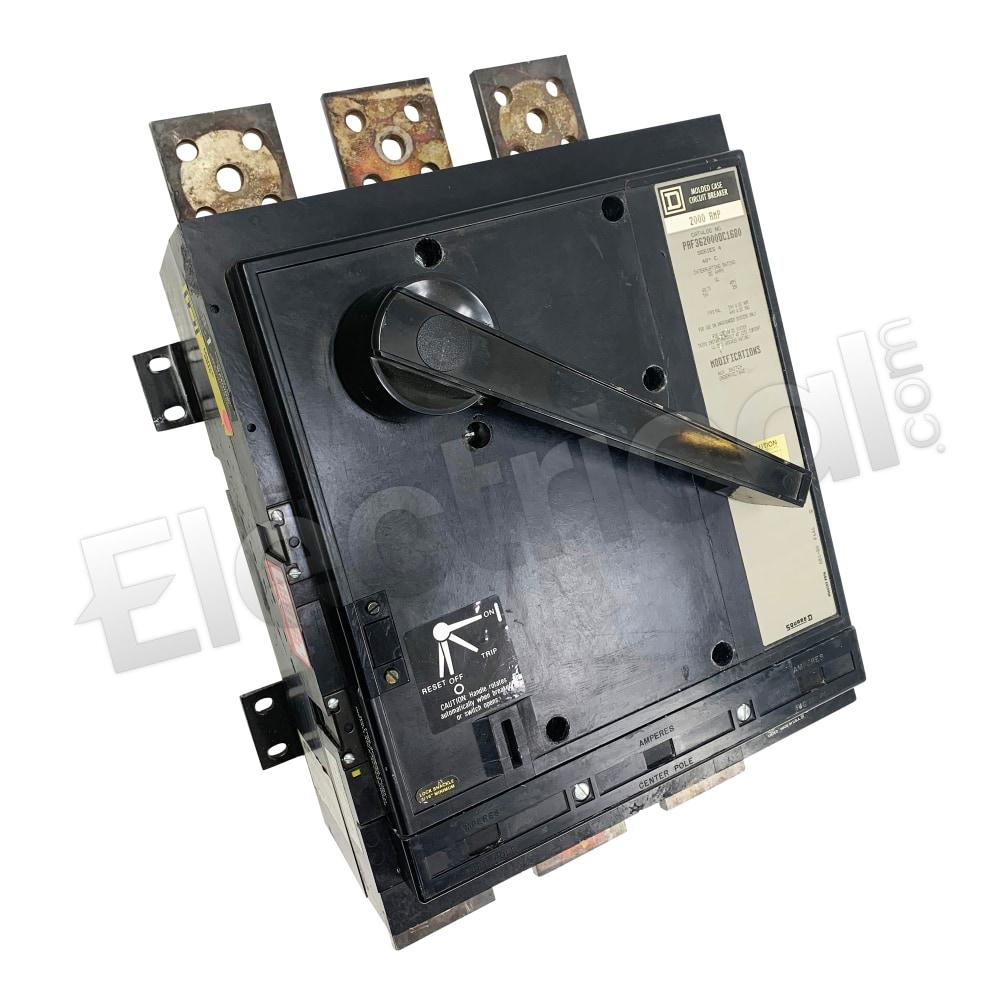

PAF362000DC1680
PAF362000DC1680
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
PAF362000DC1680 Specifications
View Full SpecificationsView Specifications
PAF362000DC1680, Square D, PAF Series, type PAF, 3P, 3PH, 2000A, 600Vdc, DC rated, 25kA@500VDC, high interrupting capacity, Bolt-On, complete with 48V undervoltage trip 50mA and 2A/2B auxiliary switch, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, DC molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PAF Series | Amperage | 2000 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PAF Series | ||
| Amperage | 2000 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
PAF362000DC1680 Specifications:
Part NumberPAF362000DC1680
Manufacturers
Sub-CategoryMolded Case
FamilyPAF Series
TypePAF
Weight90 lbs
Amperage2000
Voltage600
Poles3
AIC Rating25kA@500VDC
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeP Frame
Phase3
