- Circuit Breaker /
- Molded Case /
- Square D /
PHF360000M2100
PHF360000M2100
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
PHF360000M2100 Specifications
View Full SpecificationsView Specifications

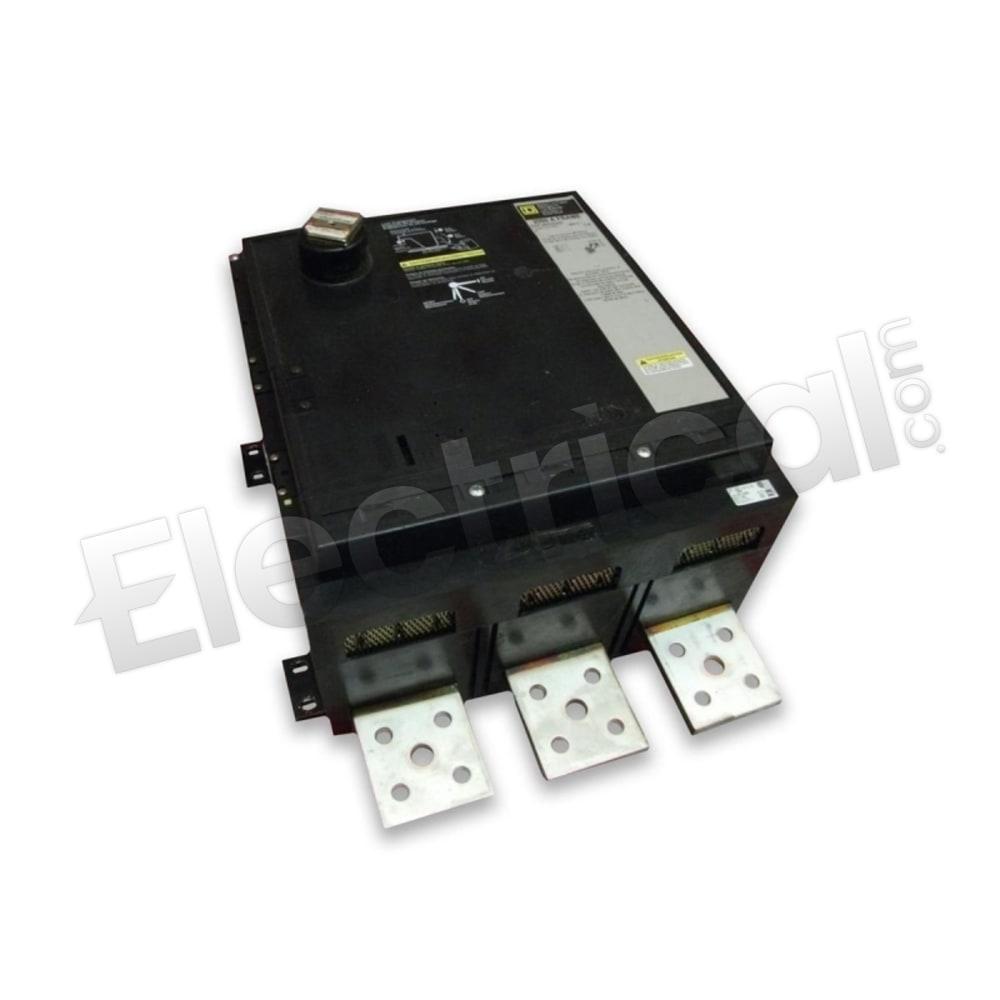

PHF360000M2100, Square D, PHF Series, type PHF, 3P, 3PH, 2000A, 600V, 100kA@480V, high interrupting capacity, Bolt-On, I - Instantaneous protection only, with 1A/1B alarm switch, lugs not included, Magnetic Only automatic molded case switch, molded case circuit breakers; these breakers are obsolete, however we do still stock them
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PHF Series | Amperage | 2000 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PHF Series | ||
| Amperage | 2000 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
PHF360000M2100 Specifications:
Part NumberPHF360000M2100
Manufacturers
Sub-CategoryMolded Case
FamilyPHF Series
TypePHF
Weight90 lbs
Amperage2000
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Frame TypeP Frame
Phase3
