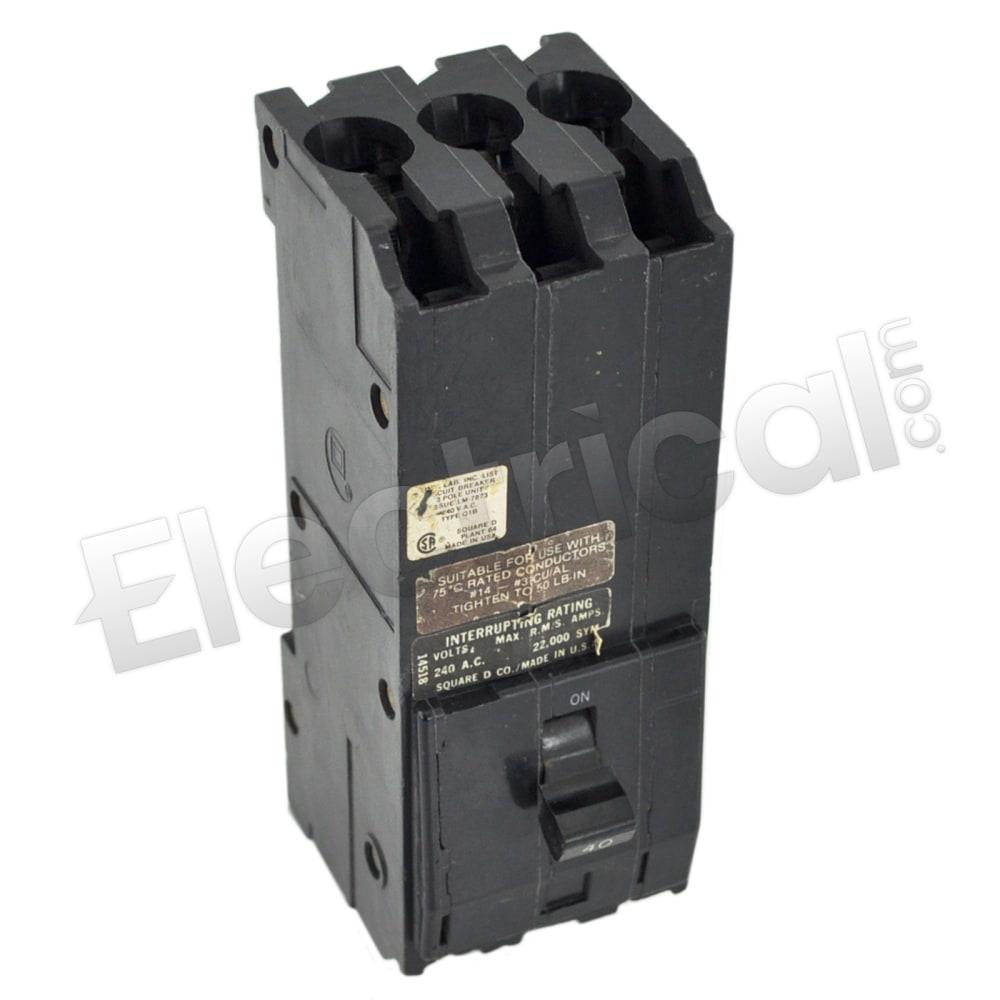

Q1335
Q1335
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
Q1335 Specifications
View Full SpecificationsView Specifications
Q1335, Square D, Q1 Series, type Q1, 3P, 3PH, 35A, 240V, 10kA@240V, standard interrupting capacity, 40°C, Plug-In, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do stock them
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | Q1 Series | Amperage | 35 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | Q1 Series | ||
| Amperage | 35 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
Q1335 Specifications:
Part NumberQ1335
Manufacturers
Sub-CategoryMolded Case
FamilyQ1 Series
TypeQ1
Weight2 lbs
Amperage35
Voltage240
Poles3
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase3
Additional Information
