Q4F3300

Square D - Molded Case

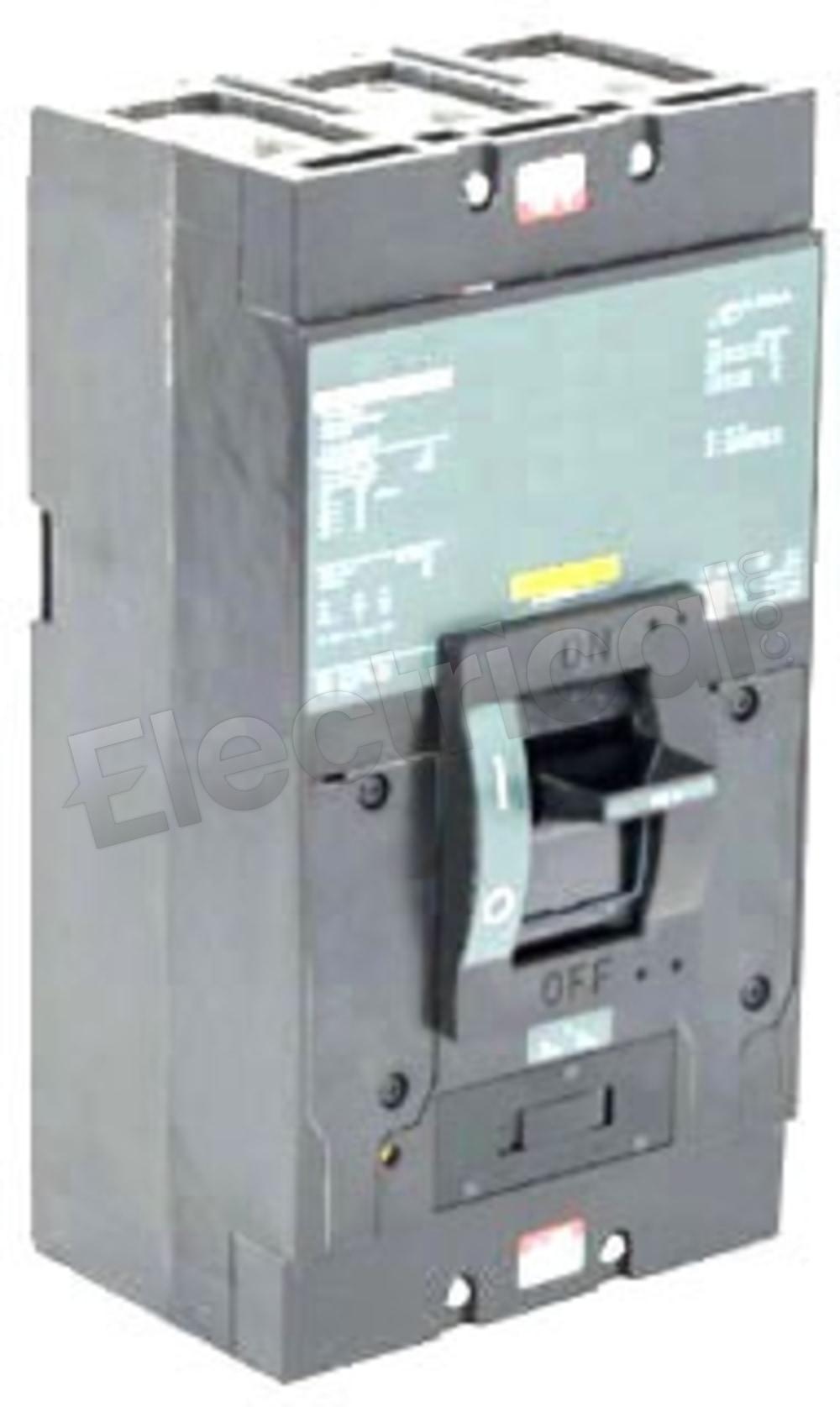

Square D Molded Case Q4F3300

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

Q4F3300 Specifications

View Specifications

Q4F3300, FRAME ONLY, Square D, Q4L Series, type Q4F, 3P, 3PH, 300A, 240V, 25kA@240V, standard interrupting capacity, 40ºC, Bolt-On, Thermal Magnetic, molded case circuit breakers

Manufacturer
Square D
Subcategory
Molded Case
Family
Q4L Series
Amperage
300
Voltage
240
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
Q4F3300 Specifications:
Part NumberQ4F3300
Manufacturers
Square D
Sub-CategoryMolded Case
FamilyQ4L Series
TypeQ4F
Weight14 lbs
Amperage300
Voltage240
Poles3
AIC Rating25kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
