- Circuit Breaker /
- Molded Case /
- Square D /

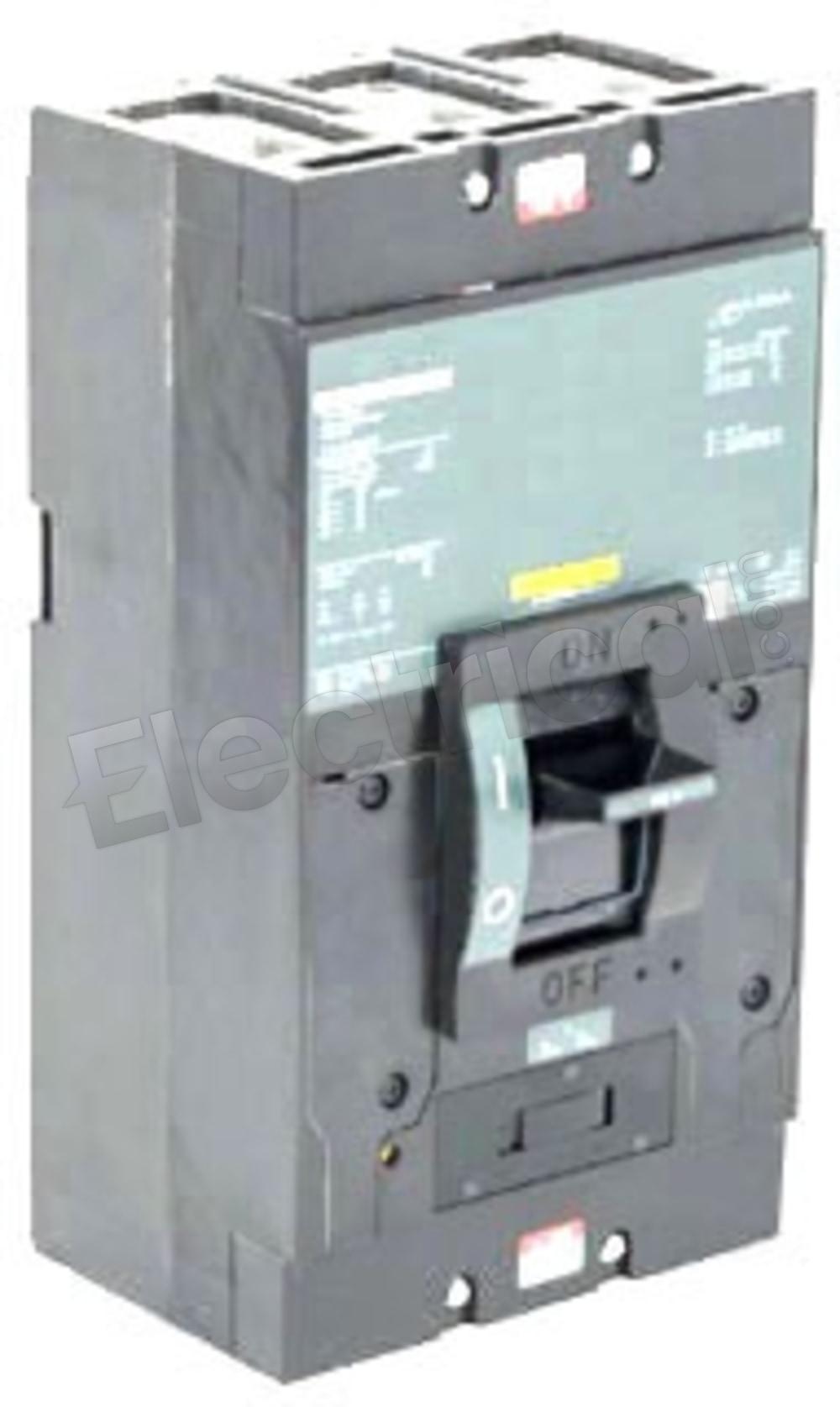

Q4L2250
Q4L2250
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
Q4L2250 Specifications
View Full SpecificationsView Specifications
Q4L2250, Square D, Q4L Series, type Q4L, 2P, 1PH, 250A, 240V, 25kA@240V, standard interrupting capacity, 40?C, Feed-Thru, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | Q4L Series | Amperage | 250 |
| Voltage | 240 | Poles | 2 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | Q4L Series | ||
| Amperage | 250 | ||
| Voltage | 240 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
Q4L2250 Specifications:
Part NumberQ4L2250
Manufacturers
Sub-CategoryMolded Case
FamilyQ4L Series
TypeQ4L
UPC785901649212
Weight6.53 lbs
Amperage250
Voltage240
Poles2
AIC Rating25kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
Additional Information
