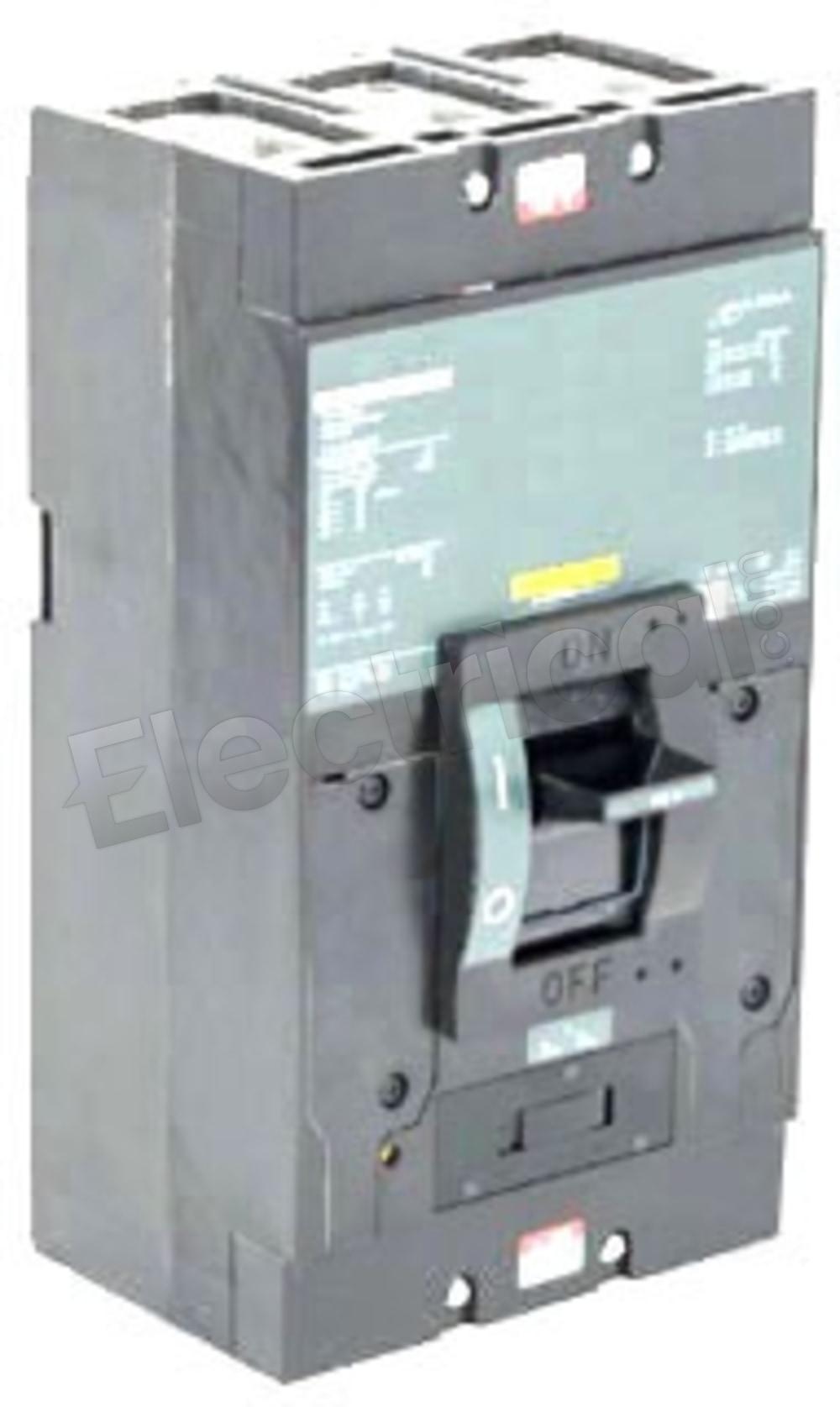

Q4P3400 Square D 400A 3P Q4P Series Molded Case Circuit Breaker

Q4P3400

Square D - Molded Case

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

Q4P3400 Specifications

View Full SpecificationsView Specifications

Q4P3400, Square D, Q4P Series, type Q4P, 3P, 3PH, 400A, 240V, 25kA@240V, standard interrupting capacity, 40ºC, Bolt-On, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer	Square D	Subcategory	Molded Case
Family	Q4P Series	Amperage	400
Voltage	240	Poles	3
Manufacturer	Square D
Subcategory	Molded Case
Family	Q4P Series
Amperage	400
Voltage	240
Poles	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Q4P3400 Specifications:

Part NumberQ4P3400

Manufacturers

Square D

Sub-CategoryMolded Case

FamilyQ4P Series

TypeQ4P

Weight16 lbs

Amperage400

Voltage240

Poles3

AIC Rating25kA@240V
