- Circuit Breaker /
- Molded Case /
- Square D /
QGL22200LW
QGL22200LW
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
QGL22200LW Specifications
View Full SpecificationsView Specifications

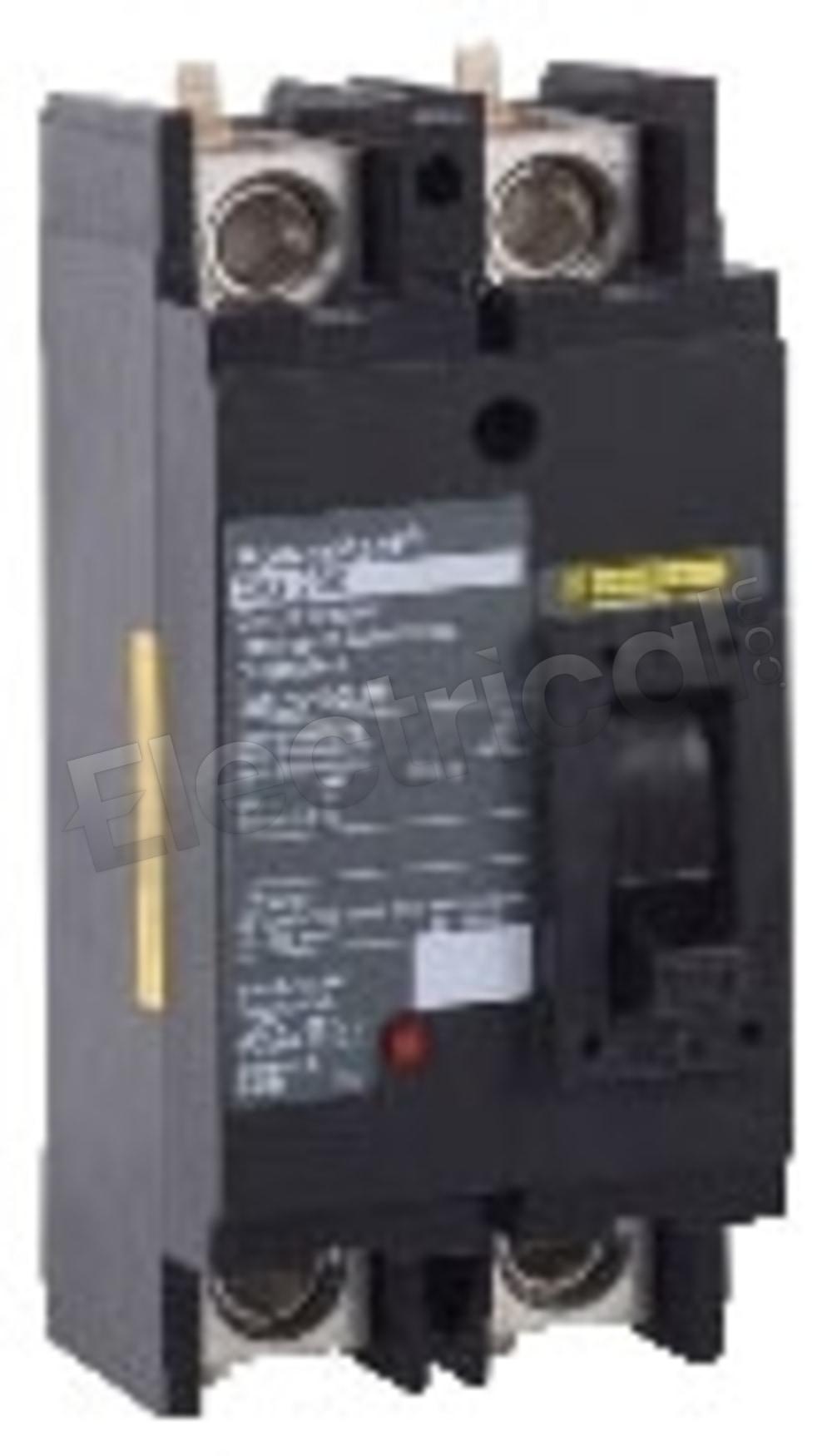

QGL22200LW, Square D, Schneider Electric, PowerPact, type QGL, 1PH, 2P, 240V, 200A, 65kA@240V, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | PowerPact | Amperage | 200 |
| Voltage | 240 | Poles | 2 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | PowerPact | ||
| Amperage | 200 | ||
| Voltage | 240 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
QGL22200LW Specifications:
Part NumberQGL22200LW
Manufacturers
Sub-CategoryMolded Case
FamilyPowerPact
TypeQGL
UPC785901926023
Weight1.55 lbs
Amperage200
Voltage240
Poles2
AIC Rating65kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
Additional Information
