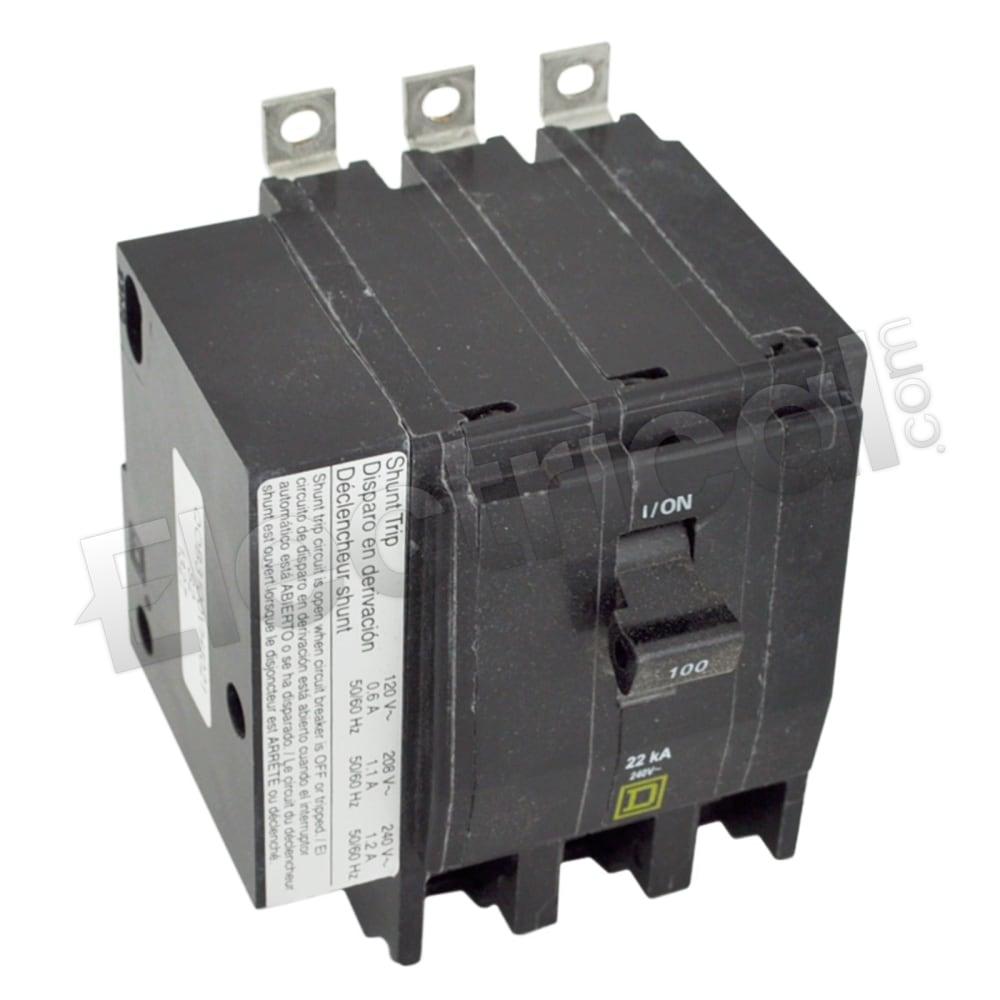

QOB360VH1021
QOB360VH1021
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
QOB360VH1021 Specifications
View Full SpecificationsView Specifications
QOB360VH1021, Square D, QOB Series, type QOB, 3P, 3PH, 60A, 240V, 22kA@240V, Bolt-On, with 120/240V shunt trip, Thermal Magnetic, molded case circuit breakers suitable for QOB Series load centers
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | QOB Series | Amperage | 60 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | QOB Series | ||
| Amperage | 60 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
QOB360VH1021 Specifications:
Part NumberQOB360VH1021
Manufacturers
Sub-CategoryMolded Case
FamilyQOB Series
TypeQOB
UPC785901335498
Amperage60
Voltage240
Poles3
AIC Rating22kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
Shunt Trip120/240V
ConnectionBolt-On
Phase3
