QOM100VHL
QOM100VHL
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
QOM100VHL Specifications
View Full SpecificationsView Specifications

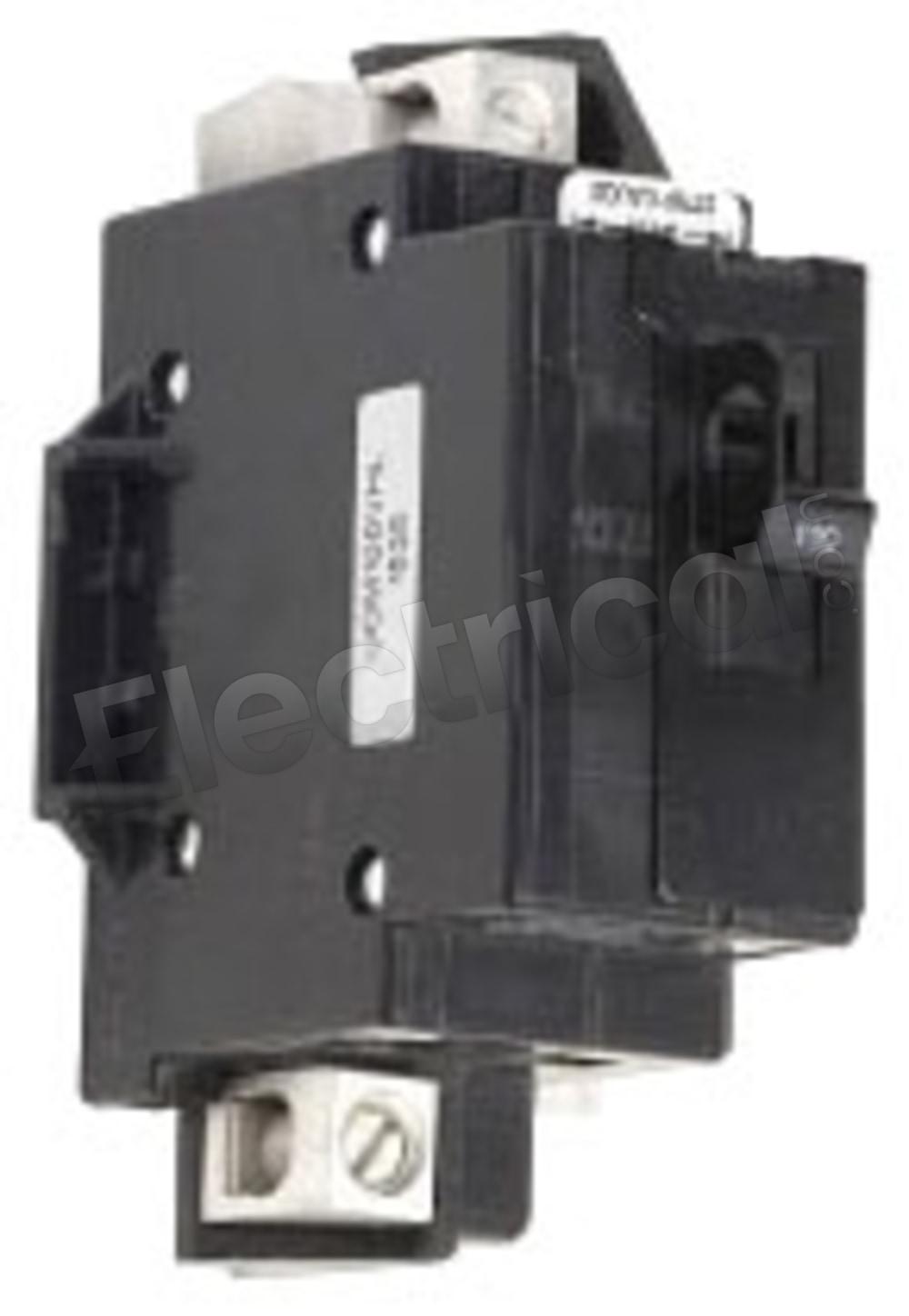

QOM100VHL, Square D, QO Series main breaker kit, 1P, 1PH, 100A, 120V, 22kA@120V, Feed-Thru, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers, includes factory installed handle padlock attachment
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | QO Series | Amperage | 100 |
| Voltage | 120 | Poles | 1 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | QO Series | ||
| Amperage | 100 | ||
| Voltage | 120 | ||
| Poles | 1 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
QOM100VHL Specifications:
Part NumberQOM100VHL
Manufacturers
Sub-CategoryMolded Case
FamilyQO Series
TypeQOM
UPC785901114895
Weight1 lbs
Amperage100
Voltage120
Poles1
AIC Rating22kA@120V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
