QOU115
QOU115
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
QOU115 Specifications
View Full SpecificationsView Specifications

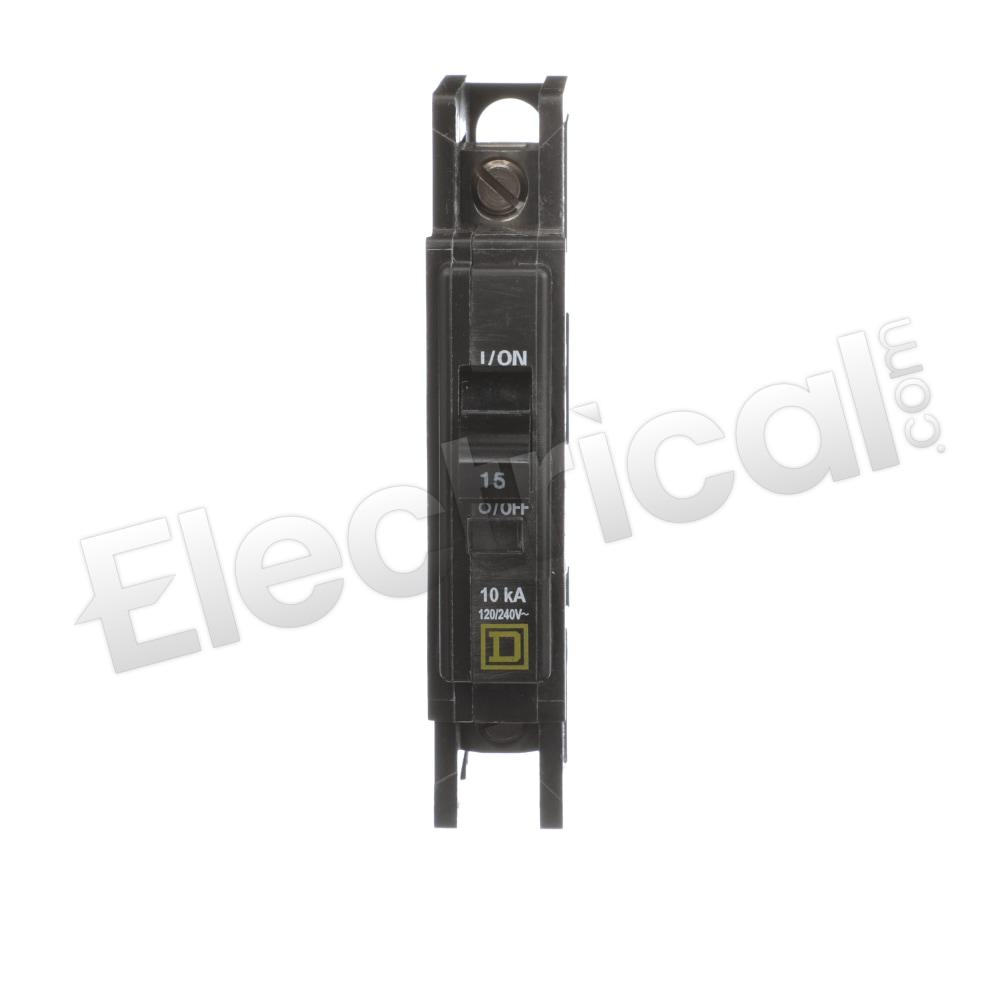

QOU115, Square D, QOU Series, type QOU, 1P, 1PH, 15A, 120V, 10kA@120V, standard interrupting capacity, 40°C, Bolt-On, Thermal Magnetic, molded case circuit breakers, with field reversible lugs for forward or reverse connection
| Manufacturer | Square D | Subcategory | Molded Case |
| Family | QOU Series | Amperage | 15 |
| Voltage | 120 | Poles | 1 |
| Manufacturer | Square D | ||
| Subcategory | Molded Case | ||
| Family | QOU Series | ||
| Amperage | 15 | ||
| Voltage | 120 | ||
| Poles | 1 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
QOU115 Specifications:
Part NumberQOU115
Manufacturers
Sub-CategoryMolded Case
FamilyQOU Series
TypeQOU
UPC785901418504
Weight1 lbs
Amperage15
Voltage120
Poles1
AIC Rating10kA@120V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
