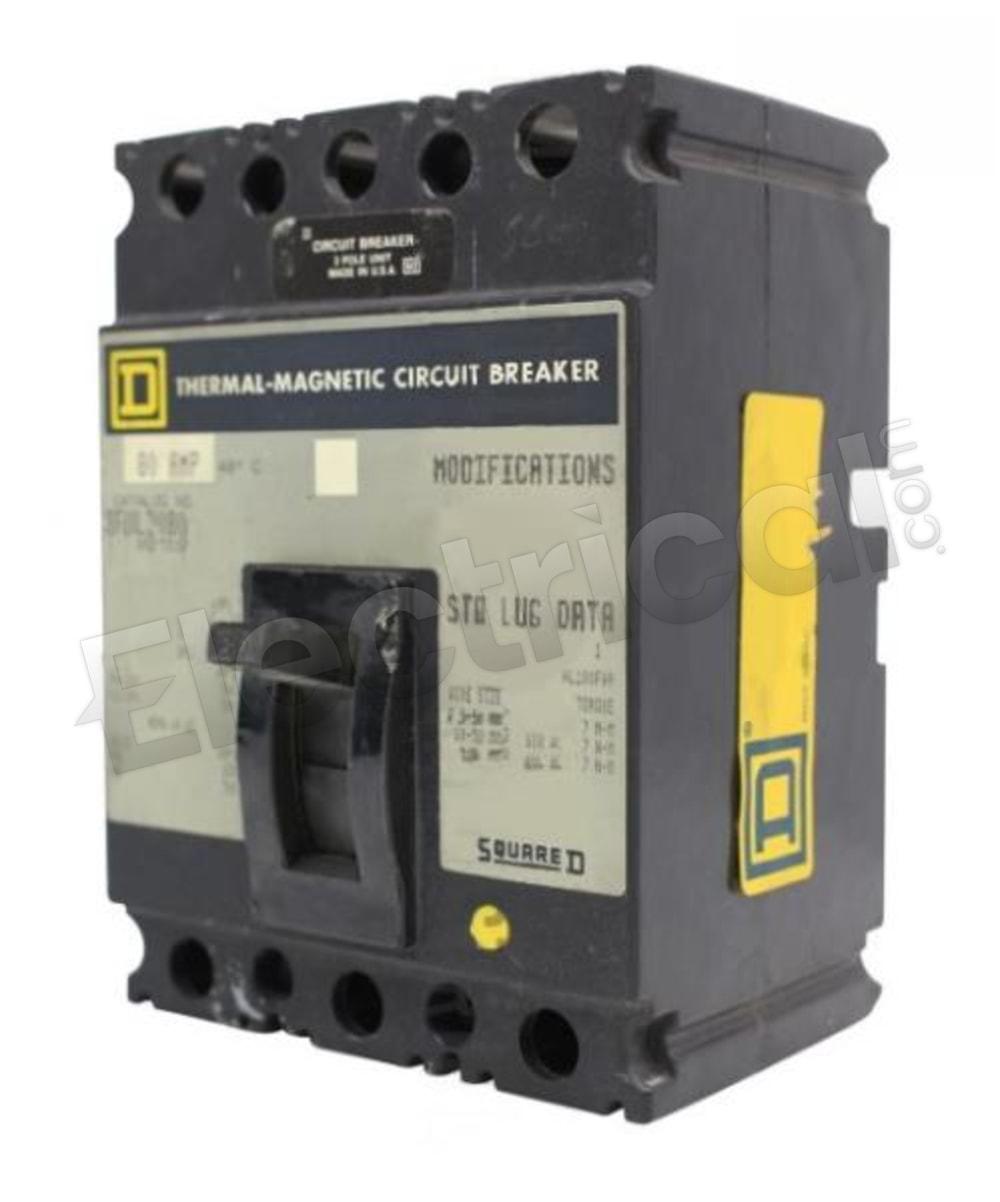

SFHL3080 Square D 80A 3P SFAL Series Molded Case Circuit Breaker

SFHL3080

Square D - Molded Case

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

SFHL3080 Specifications

View Full SpecificationsView Specifications

SFHL3080, Square D, Schneider Electric, SFAL Series, type SFHL3, 3P, 3PH, 80A, 415V/240V, 65kA@415V, CCC certified, IEC rated, high interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer	Square D	Subcategory	Molded Case
Family	SFAL Series	Amperage	80
Voltage	415	Poles	3
Manufacturer	Square D
Subcategory	Molded Case
Family	SFAL Series
Amperage	80
Voltage	415
Poles	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

SFHL3080 Specifications:

Part NumberSFHL3080

Manufacturers

Square D, Schneider Electric

Sub-CategoryMolded Case

FamilySFAL Series

TypeSFHL3

Weight4 lbs

Amperage80

Voltage415

Poles3

AIC Rating65kA@415V
