E2F3030

Westinghouse - Molded Case

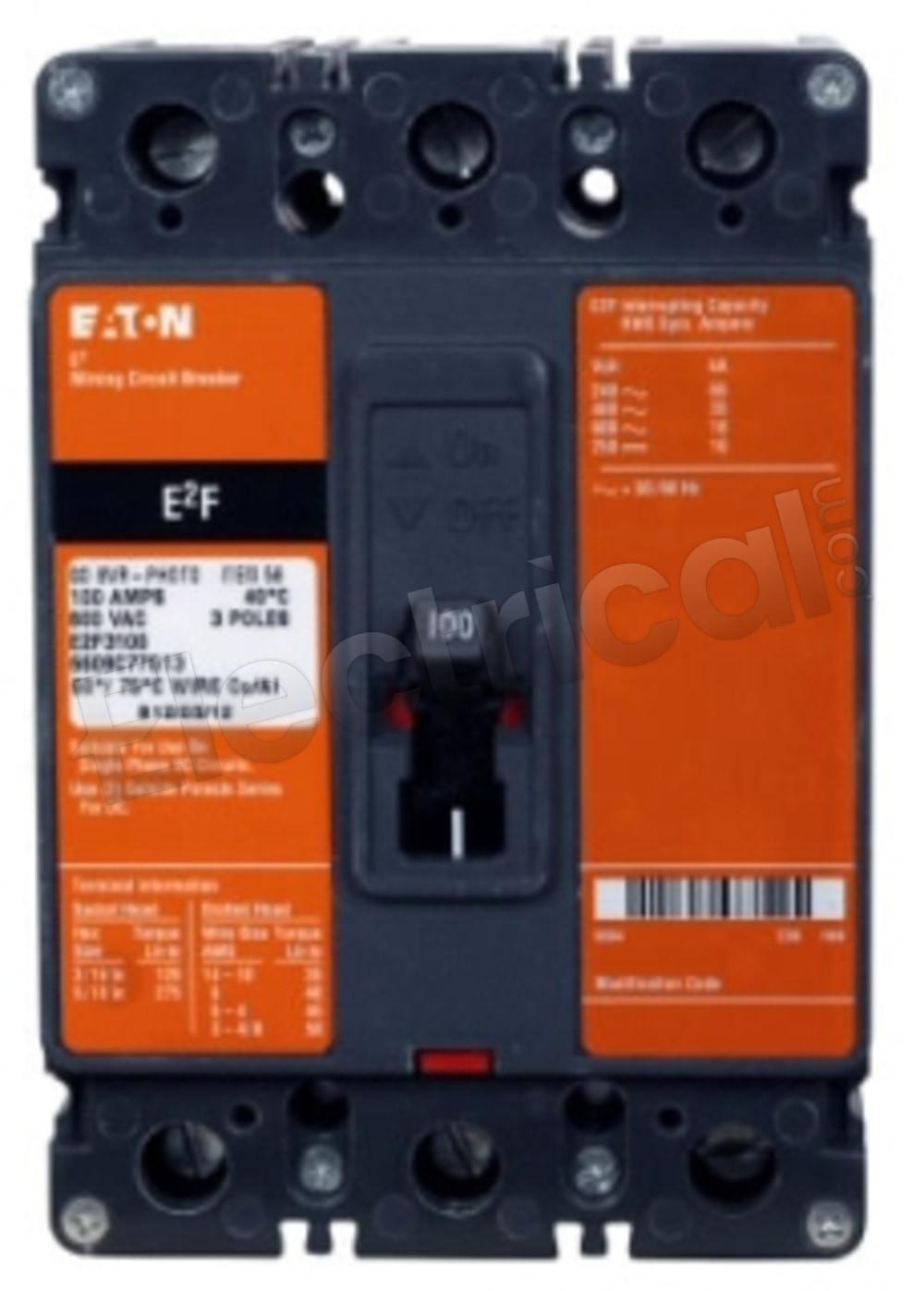

Westinghouse Molded Case E2F3030

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E2F3030 Specifications

View Specifications

E2F3030, Cutler Hammer, Eaton, Westinghouse, Series C, E2 mining service breakers, type E2F, 3P, 3PH, 30A, 600V, 250Vdc, 18kA@600V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
30
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E2F3030 Specifications:
Part NumberE2F3030
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeE2F
UPC786679064511
Weight4.5 lbs
Amperage30
Voltage600
Poles3
AIC Rating18kA@600V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
