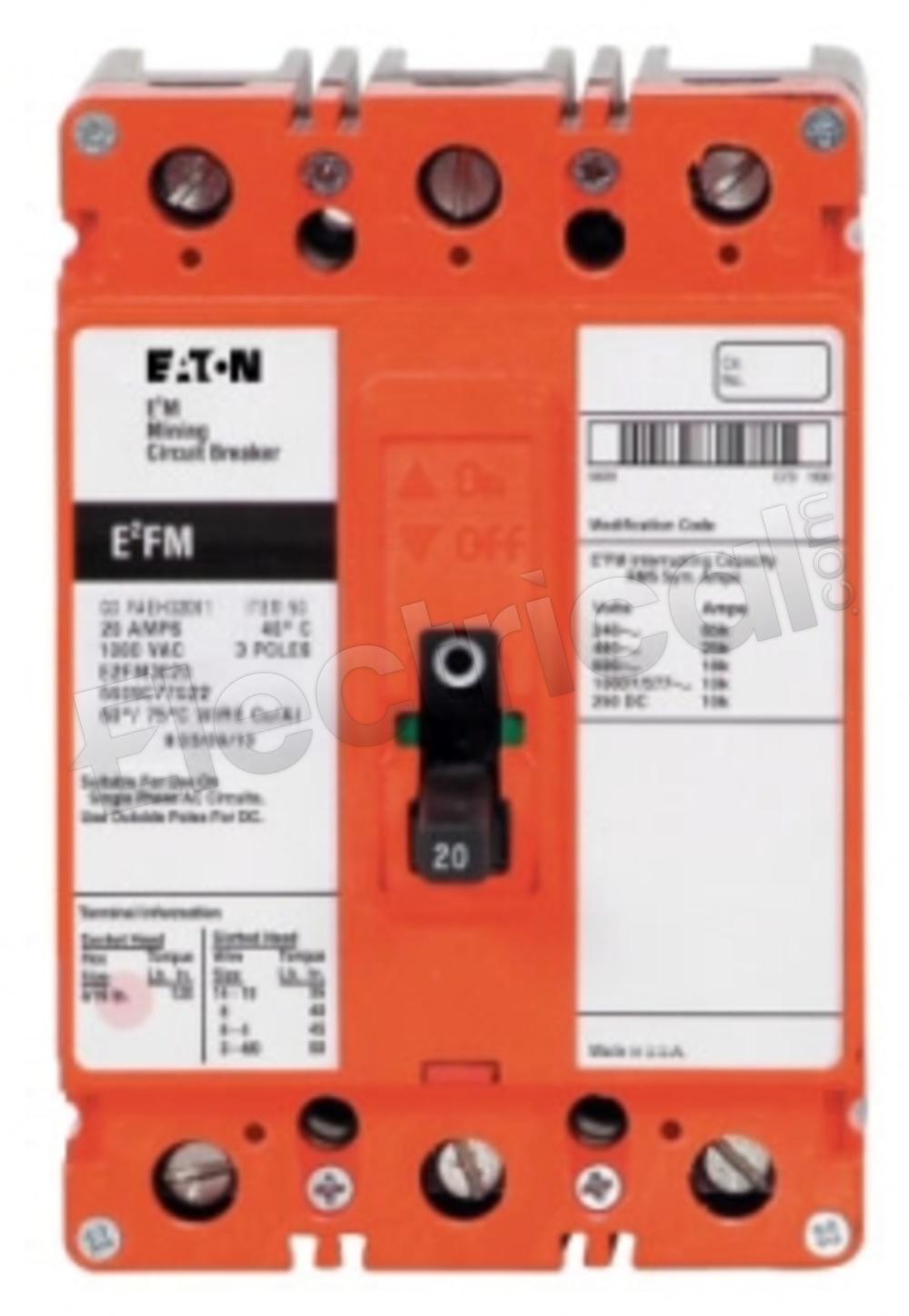

E2FM150UM
E2FM150UM
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
E2FM150UM Specifications
View Full SpecificationsView Specifications
E2FM150UM, Cutler Hammer, Eaton, Westinghouse, Series C, E2 mining service breakers, type E2FM, 3P, 3PH, 150A, 1000V, 250Vdc, 10kA@1000V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protectors, magnetic range 750-2500A, Magnetic Only, molded case circuit breakers
| Manufacturer | Westinghouse | Subcategory | Molded Case |
| Family | Series C | Amperage | 150 |
| Voltage | 1000 | Poles | 3 |
| Manufacturer | Westinghouse | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 150 | ||
| Voltage | 1000 | ||
| Poles | 3 |
