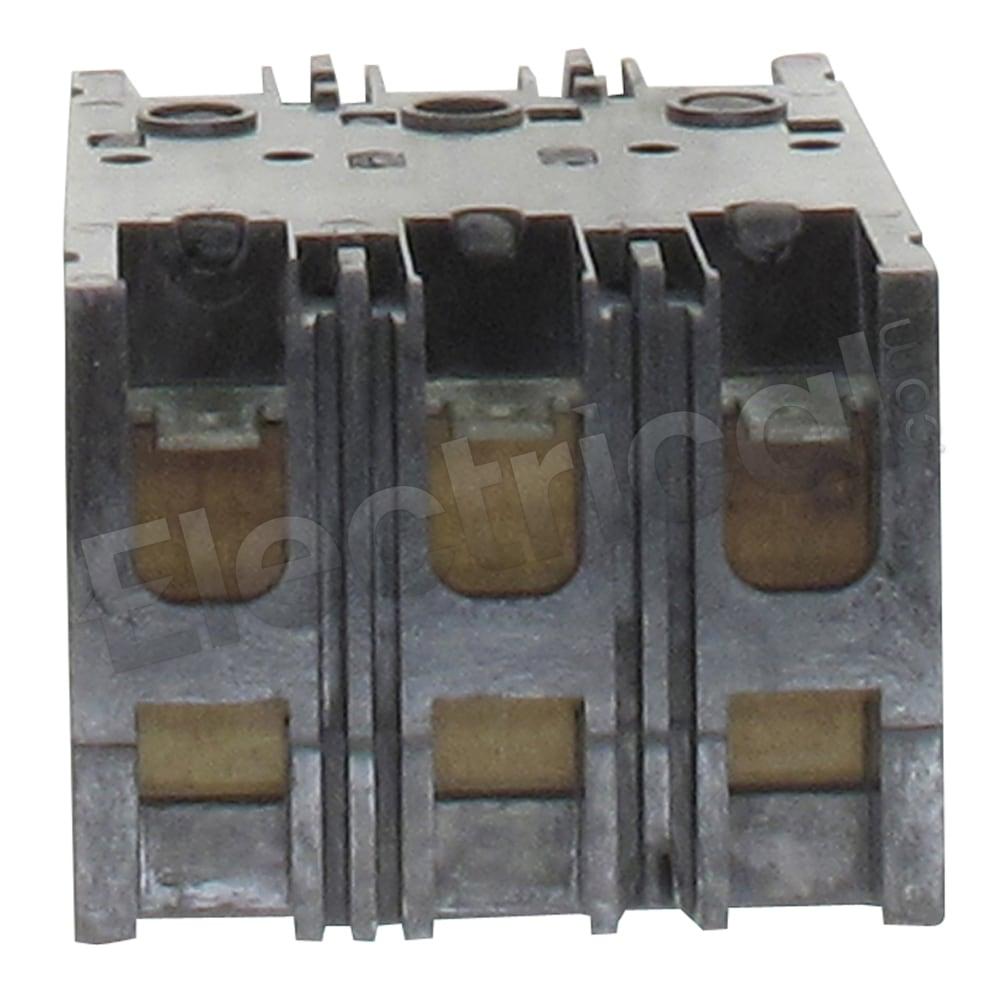

EHB3100LK Westinghouse 100A 3P AB DE-ION Molded Case Circuit Breaker

EHB3100LK

Westinghouse - Molded Case

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

EHB3100LK Specifications

View Full SpecificationsView Specifications

EHB3100LK, Westinghouse, Cutler Hammer, AB DE-ION, type EHB, 3P, 3PH, 100A, 480V, 14kA@480V, Feed-Thru, NA - No Overcurrent Protection, line & load side lug terminals, Non-Automatic molded case switch with high magnetic trip, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

Manufacturer	Westinghouse	Subcategory	Molded Case
Family	AB DE-ION	Amperage	100
Voltage	480	Poles	3
Manufacturer	Westinghouse
Subcategory	Molded Case
Family	AB DE-ION
Amperage	100
Voltage	480
Poles	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

EHB3100LK Specifications:

Part NumberEHB3100LK

Manufacturers

Westinghouse, Cutler Hammer

Sub-CategoryMolded Case

FamilyAB DE-ION

TypeEHB

Weight11 lbs

Amperage100

Voltage480

Poles3

AIC Rating14kA@480V
