- Circuit Breaker /
- Molded Case /
- Westinghouse /
F3060
F3060
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
F3060 Specifications
View Full SpecificationsView Specifications

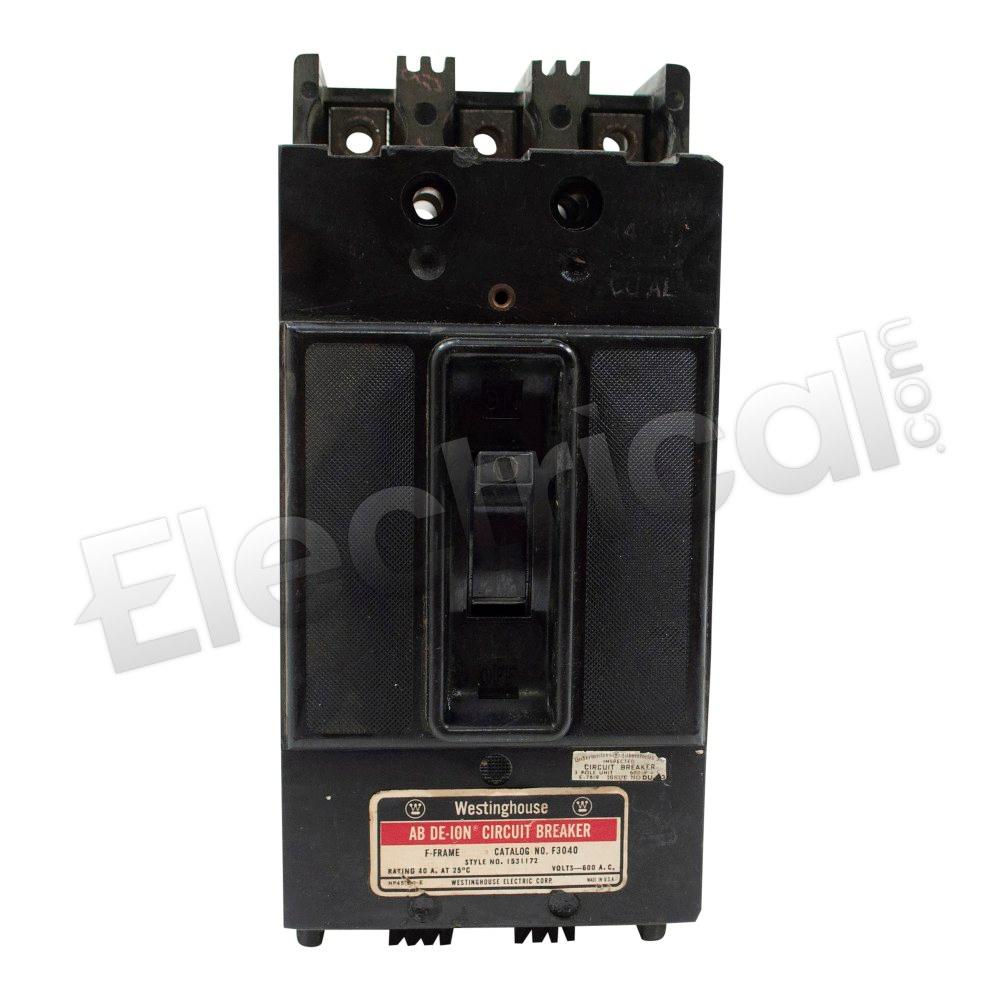

F3060, Westinghouse, Cutler Hammer, F Series, type F, 3P, 3PH, 60A, 600V, 14kA@480V, standard interrupting capacity, 40ºC, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them
| Manufacturer | Westinghouse | Subcategory | Molded Case |
| Family | F Series | Amperage | 60 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Westinghouse | ||
| Subcategory | Molded Case | ||
| Family | F Series | ||
| Amperage | 60 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
F3060 Specifications:
Part NumberF3060
Manufacturers
Sub-CategoryMolded Case
FamilyF Series
TypeF
Weight11 lbs
Amperage60
Voltage600
Poles3
AIC Rating14kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
