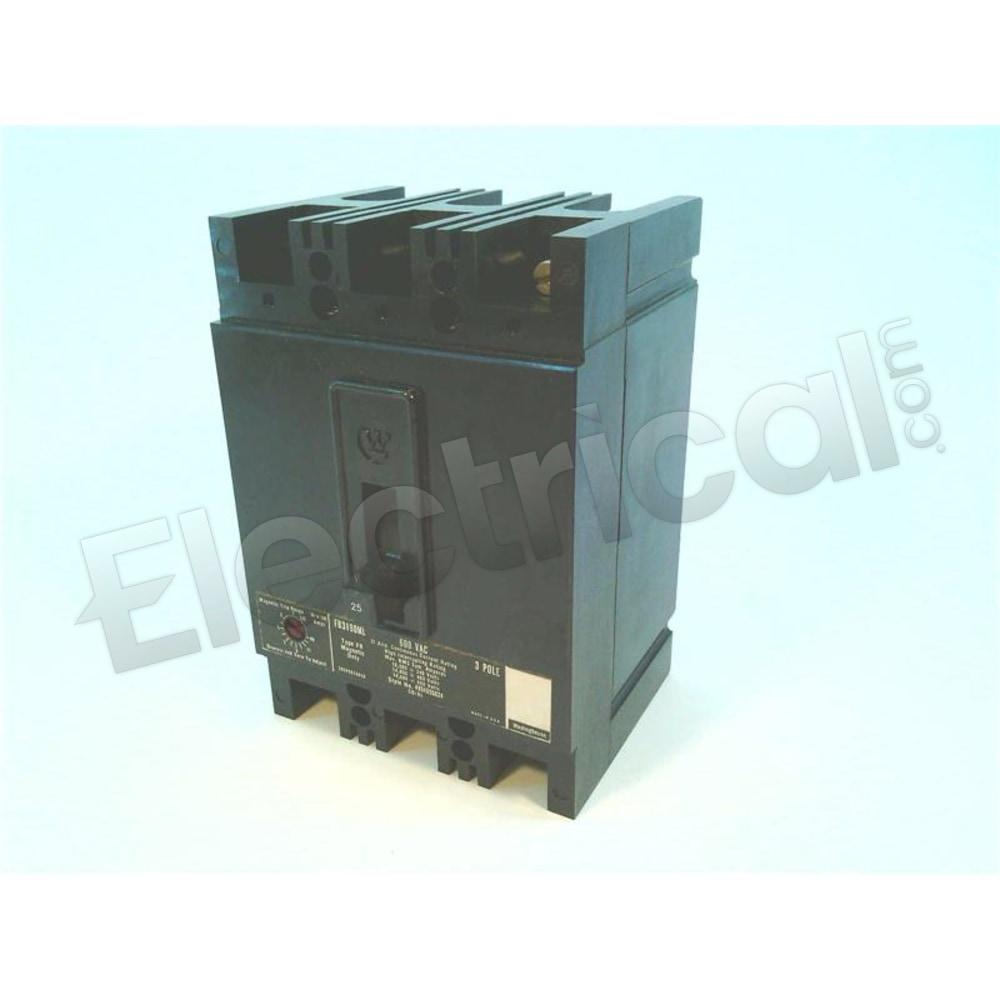

FB3190MRL
FB3190MRL
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FB3190MRL Specifications
View Full SpecificationsView Specifications
FB3190MRL, Westinghouse, Cutler Hammer, AB DE-ION, type FB, 3P, 3PH, 25A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 66-190A, Magnetic Only, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them
| Manufacturer | Westinghouse | Subcategory | Molded Case |
| Family | AB DE-ION | Amperage | 25 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Westinghouse | ||
| Subcategory | Molded Case | ||
| Family | AB DE-ION | ||
| Amperage | 25 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
