1. Circuit Breaker /
  2. Molded Case /
  3. Westinghouse /

    4. FW3160JL

FW3160JL

Westinghouse - Molded Case

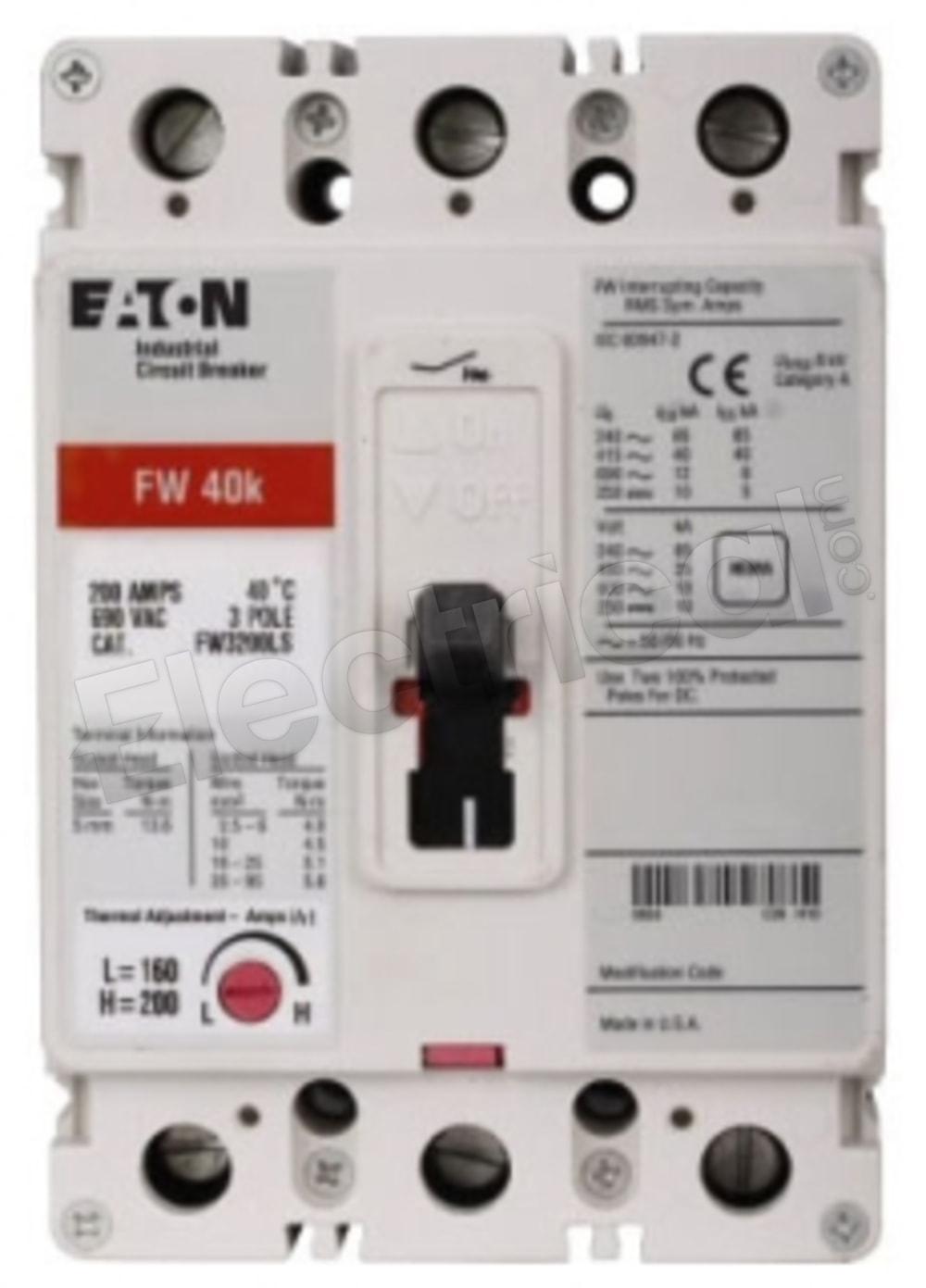

Westinghouse Molded Case FW3160JL

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FW3160JL Specifications

View Specifications

FW3160JL, Westinghouse, Cutler Hammer, Eaton, Series C, type FW-J, 3P, 3PH, 160A, 690V, 40kA@415V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable magnetic range 800-1600, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
160
Voltage
690
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FW3160JL Specifications:
Part NumberFW3160JL
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeFW-J
UPC786679003169
Weight5 lbs
Amperage160
Voltage690
Poles3
AIC Rating40kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
