FW4100J0L

Westinghouse - Molded Case

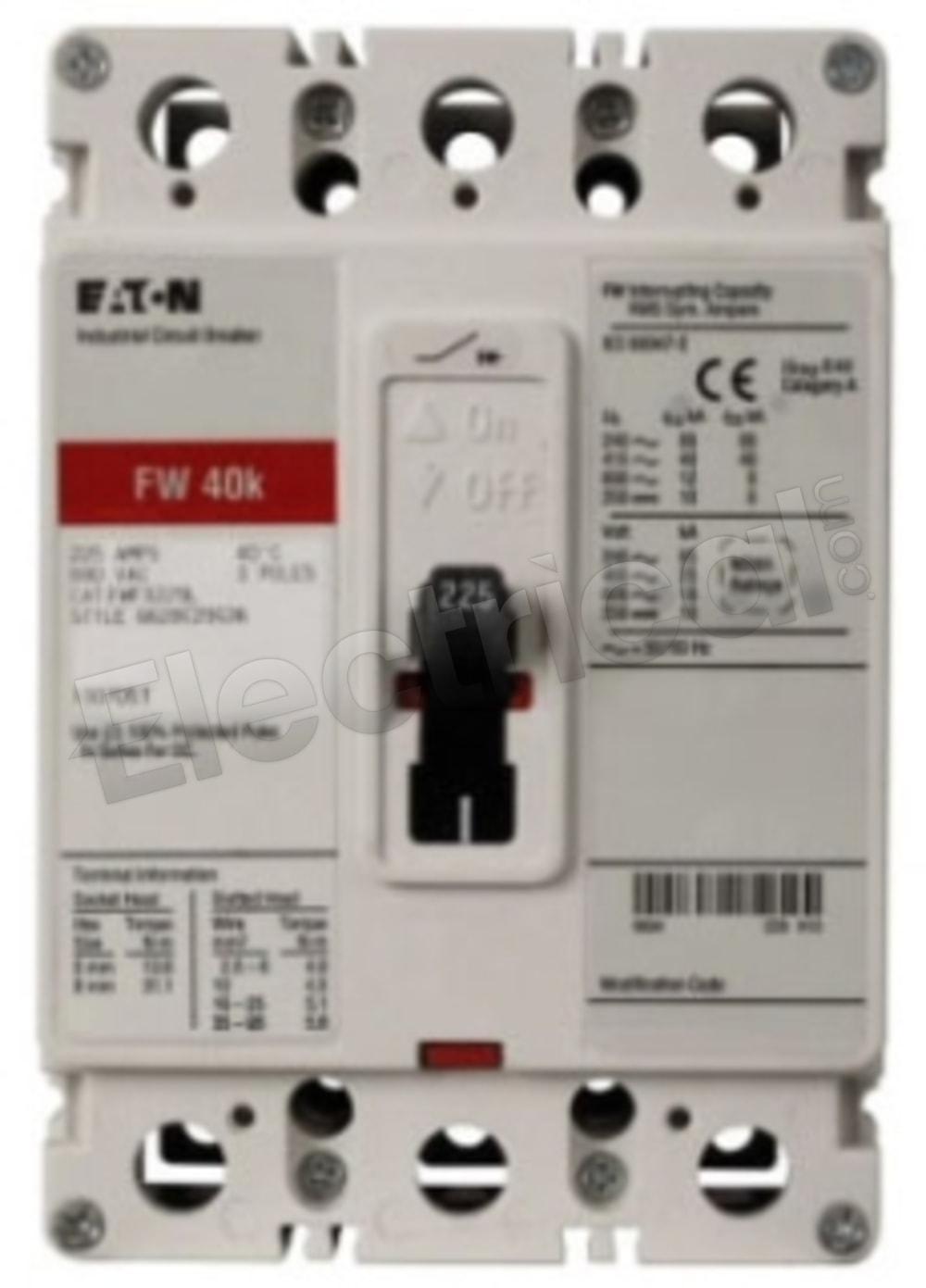

Westinghouse Molded Case FW4100J0L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FW4100J0L Specifications

View Specifications

FW4100J0L, Cutler Hammer, Eaton, Westinghouse, Series C, type FW-J, 4P with neutral, 3PH, 100A, 690V, 40kA@415V, ultra high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable magnetic range 500-1000, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
100
Voltage
690
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FW4100J0L Specifications:
Part NumberFW4100J0L
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeFW-J
UPC786679228104
Weight6.3 lbs
Amperage100
Voltage690
Poles4
AIC Rating40kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
