FWF3025L

Westinghouse - Molded Case

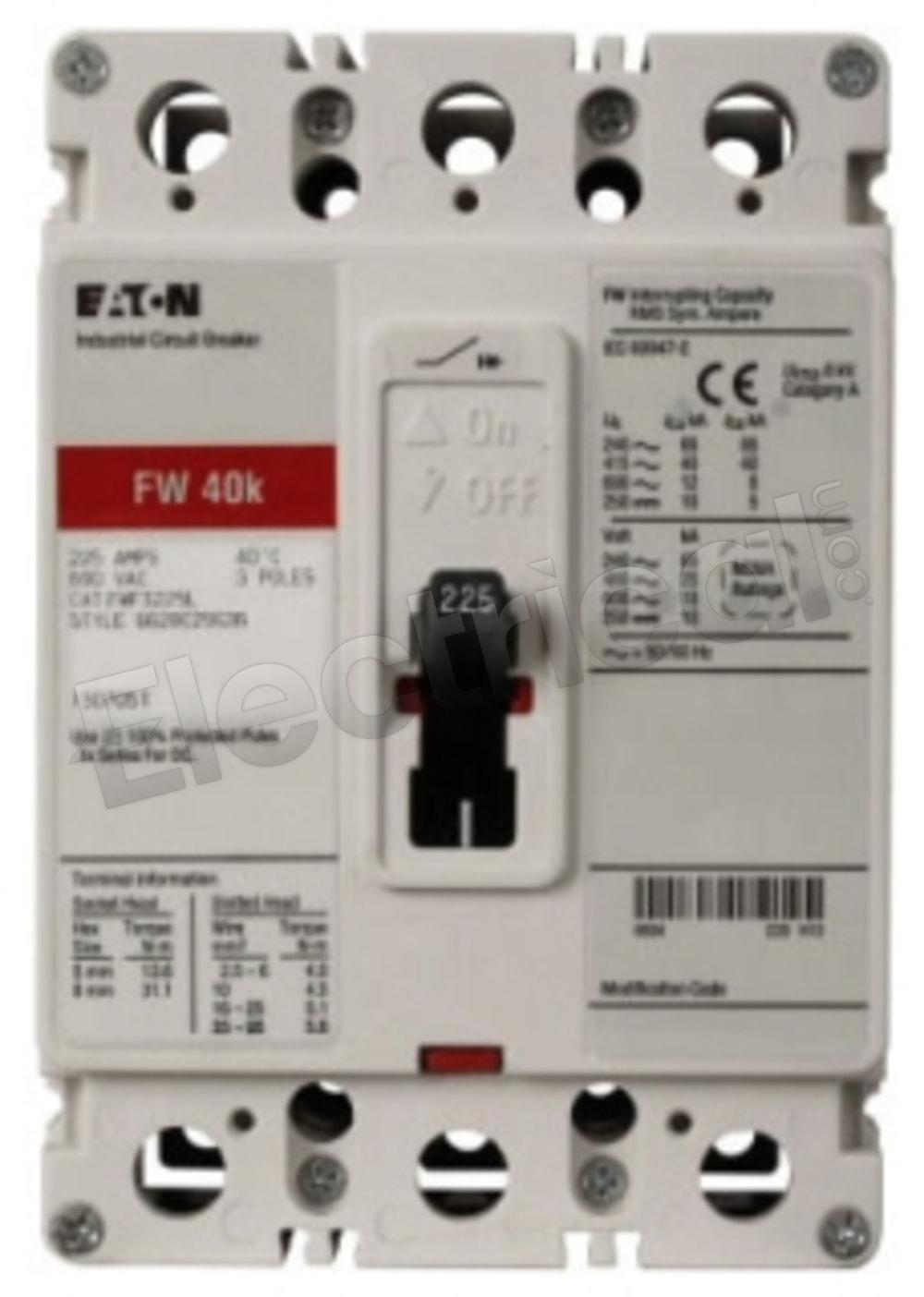

Westinghouse Molded Case FWF3025L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FWF3025L Specifications

View Specifications

FWF3025L, Westinghouse, Cutler Hammer, Eaton, Series C, type FWF, 3P, 3PH, 25A, 690V, 40kA@415V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
25
Voltage
690
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FWF3025L Specifications:
Part NumberFWF3025L
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeFWF
UPC786679247341
Weight5 lbs
Amperage25
Voltage690
Poles3
AIC Rating40kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
