1. Circuit Breaker /
  2. Molded Case /
  3. Westinghouse /

    4. FWF4063L

FWF4063L

Westinghouse - Molded Case

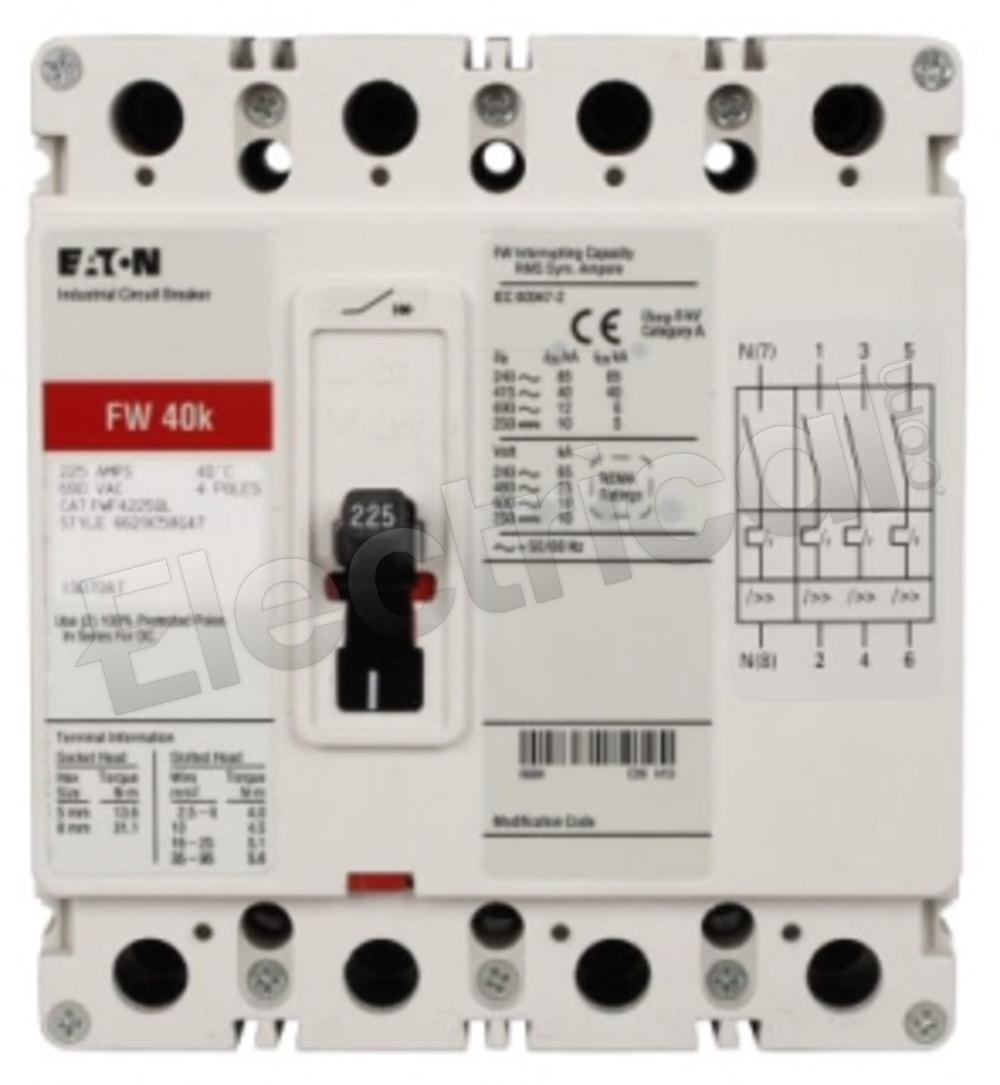

Westinghouse Molded Case FWF4063L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FWF4063L Specifications

View Specifications

FWF4063L, Eaton, Westinghouse, Cutler Hammer, Series C, type FWF, 4P with neutral, 3PH, 63A, 690V, 40kA@415V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
63
Voltage
690
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FWF4063L Specifications:
Part NumberFWF4063L
Manufacturers
Eaton, Westinghouse, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeFWF
UPC786679275863
Weight6.3 lbs
Amperage63
Voltage690
Poles4
AIC Rating40kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
