GHCGFEP1040

Westinghouse - Molded Case

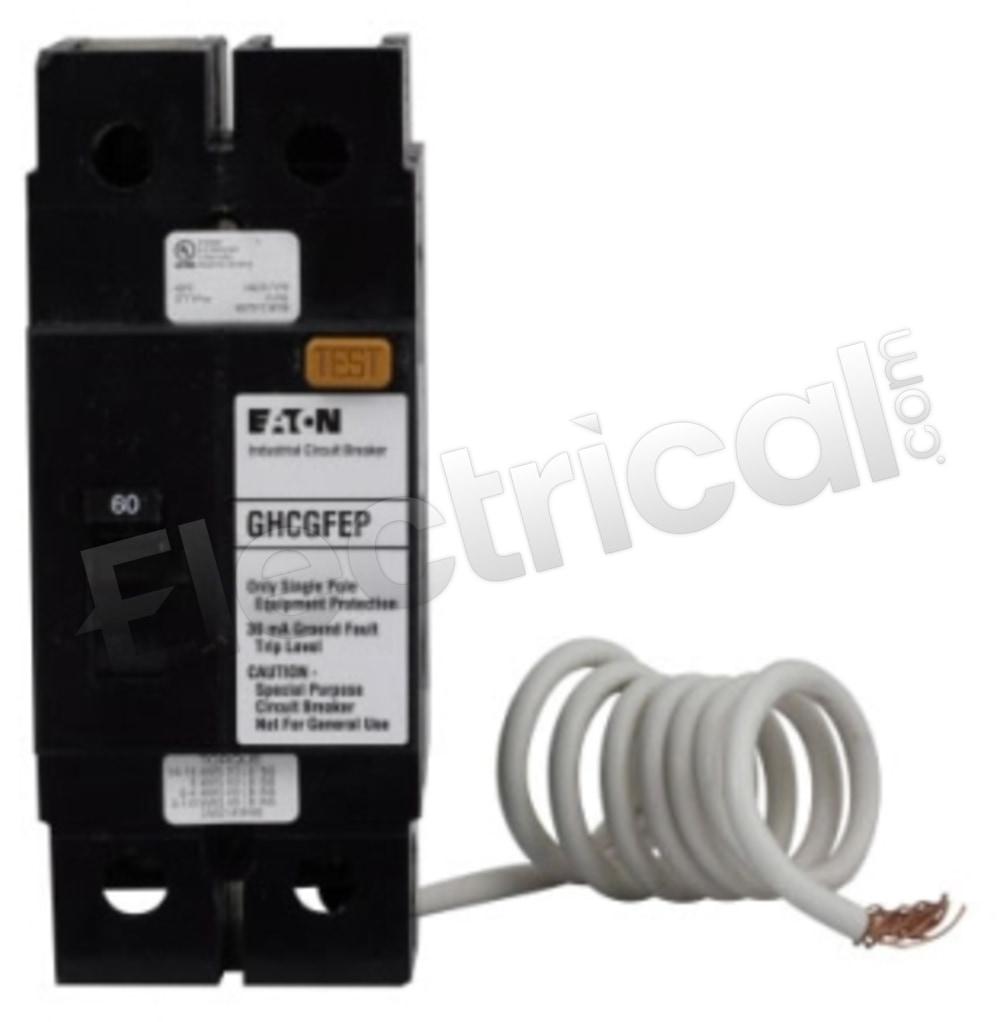

Westinghouse Molded Case GHCGFEP1040

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

GHCGFEP1040 Specifications

View Specifications

GHCGFEP1040, Westinghouse, Cutler Hammer, Eaton, Series C, type GHCGFEP, 1P, 1PH, 40A, 277V, 14kA@277V, standard interrupting capacity, 30mA industrial ground fault circuit protectors with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, 40°C, Feed-Thru, Thermal Magnetic molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
40
Voltage
277
Poles
1

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
GHCGFEP1040 Specifications:
Part NumberGHCGFEP1040
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeGHCGFEP
UPC786679067512
Weight1.5 lbs
Amperage40
Voltage277
Poles1
AIC Rating14kA@277V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeG Frame
Phase1
