GWF3100

Westinghouse - Molded Case

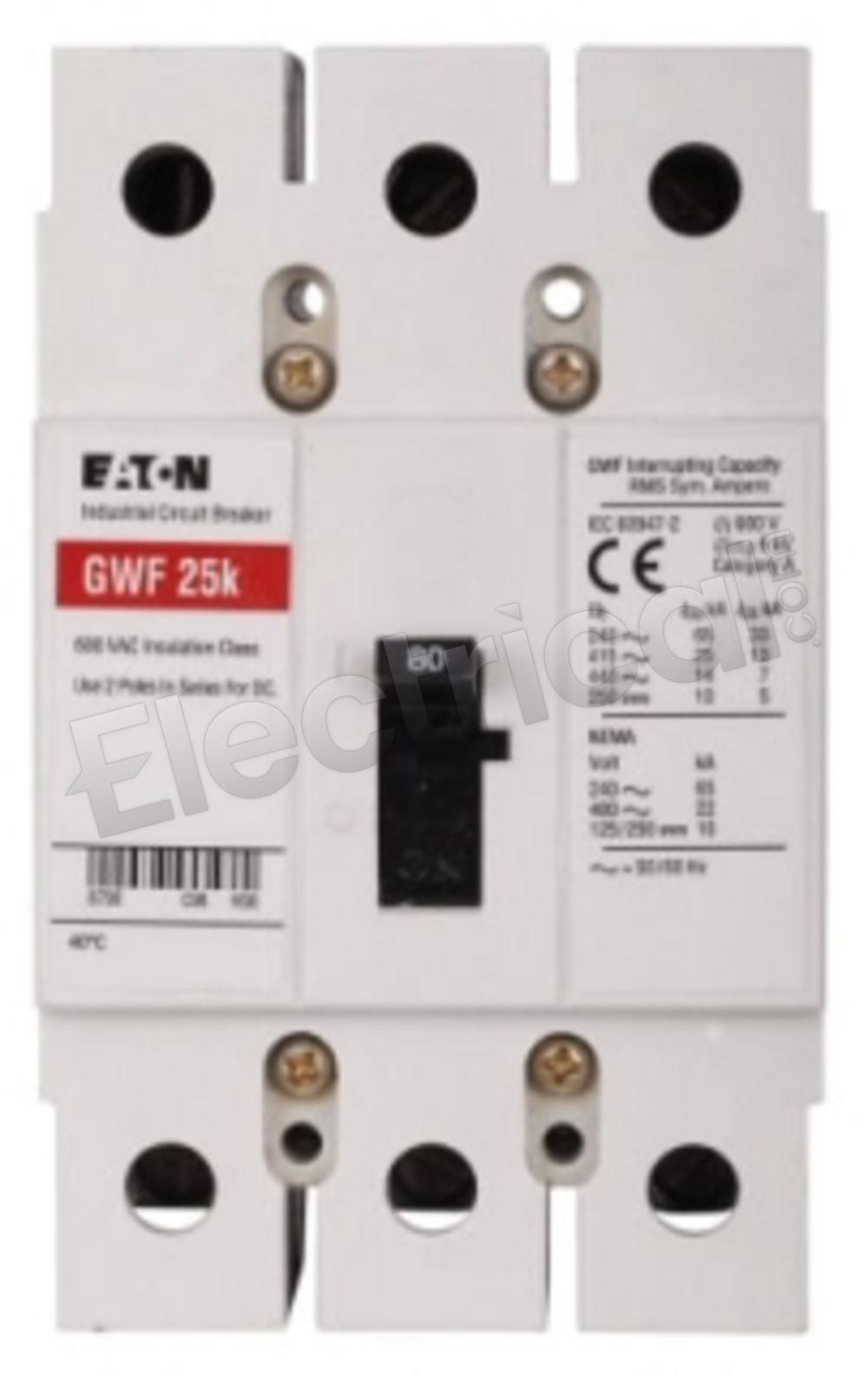

Westinghouse Molded Case GWF3100

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

GWF3100 Specifications

View Specifications

GWF3100, Eaton, Cutler Hammer, Westinghouse, Series C, type GWF, 3P, 3PH, 100A, 600V, 22kA@480V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
GWF3100 Specifications:
Part NumberGWF3100
Manufacturers
Eaton, Cutler Hammer, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeGWF
UPC786679231647
Weight2.1 lbs
Amperage100
Voltage600
Poles3
AIC Rating22kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeG Frame
Phase3
