HJD3250KW

Westinghouse - Molded Case

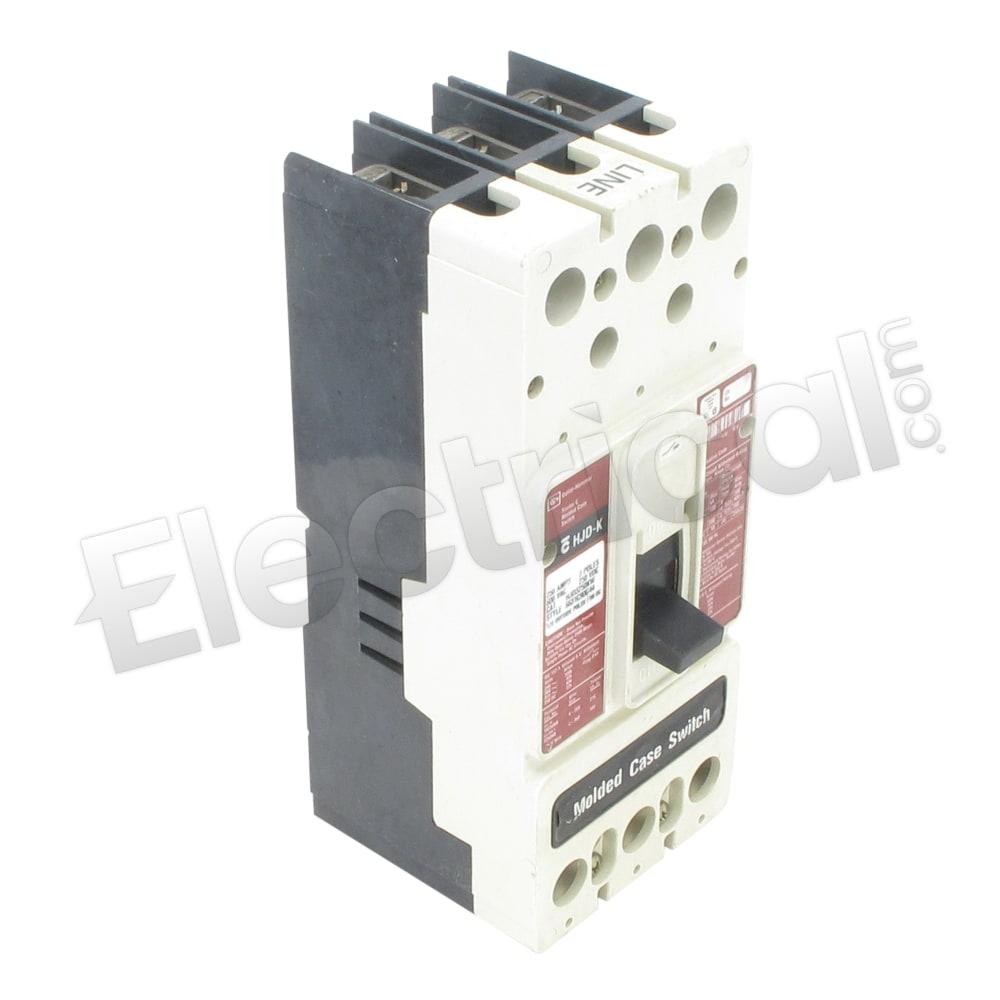

Westinghouse Molded Case HJD3250KW

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HJD3250KW Specifications

View Specifications

HJD3250KW, Westinghouse, Eaton, Cutler Hammer, Series C, type HJD, 3P, 3PH, 250A, 600V, high interrupting capacity, Bolt-On, NA - No Overcurrent Protection, complete with non-interchangeable trip unit, without lug terminals, Non-Automatic switch, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
250
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HJD3250KW Specifications:
Part NumberHJD3250KW
Manufacturers
Westinghouse, Eaton, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeHJD
UPC786679010716
Weight12.5 lbs
Amperage250
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsNA - No Overcurrent Protection
ProtectionNon-Automatic
ConnectionBolt-On
Frame TypeJ Frame
Phase3
