HKD2100

Westinghouse - Molded Case

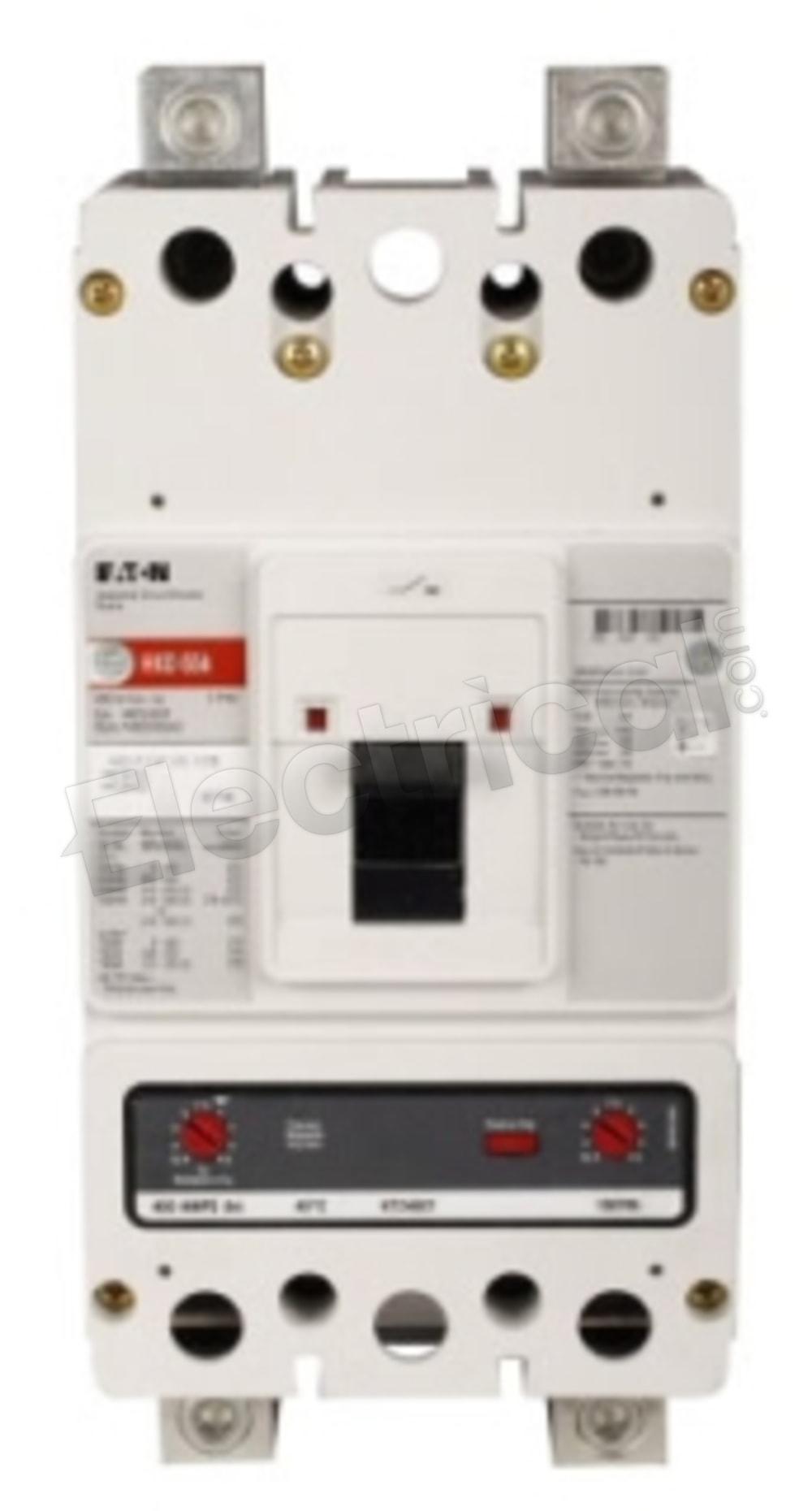

Westinghouse Molded Case HKD2100

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HKD2100 Specifications

View Specifications

HKD2100, Westinghouse, Cutler Hammer, Eaton, Series C, type HKD, 2P, 1PH, 100A, 600V, 65kA@480V, high interrupting capacity, 40°C, Feed-Thru, complete with non-interchangeable LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
100
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HKD2100 Specifications:
Part NumberHKD2100
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeHKD
UPC786679062166
Weight11.5 lbs
Amperage100
Voltage600
Poles2
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeK Frame
Phase1
