HKD2350

Westinghouse - Molded Case

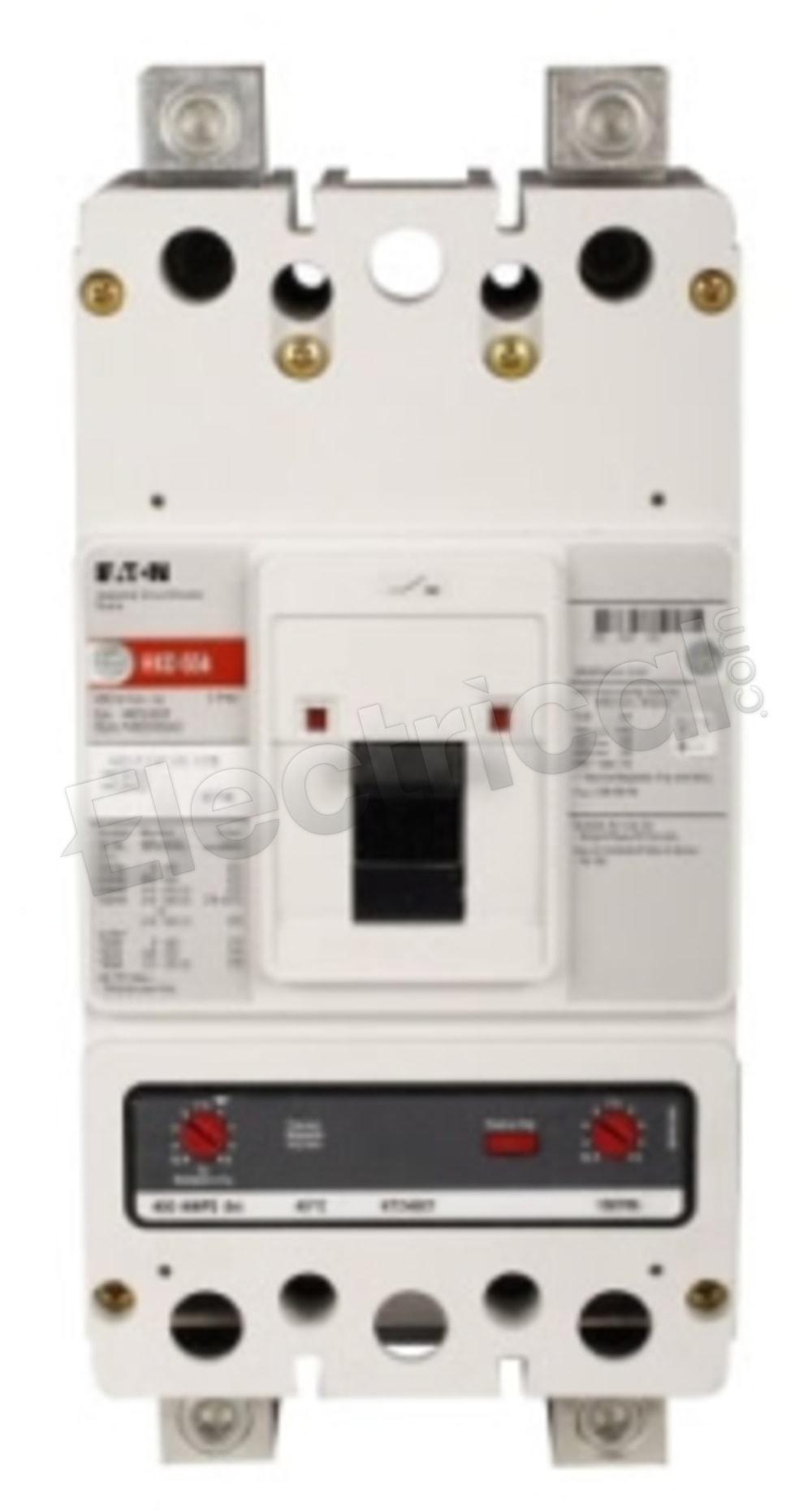

Westinghouse Molded Case HKD2350

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HKD2350 Specifications

View Specifications

HKD2350, Westinghouse, Cutler Hammer, Eaton, Series C, type HKD, 2P, 1PH, 350A, 600V, 65kA@480V, high interrupting capacity, 40°C, Feed-Thru, complete with non-interchangeable LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
350
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HKD2350 Specifications:
Part NumberHKD2350
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeHKD
UPC786679009581
Weight11.5 lbs
Amperage350
Voltage600
Poles2
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeK Frame
Phase1
