HLW3500

Westinghouse - Molded Case

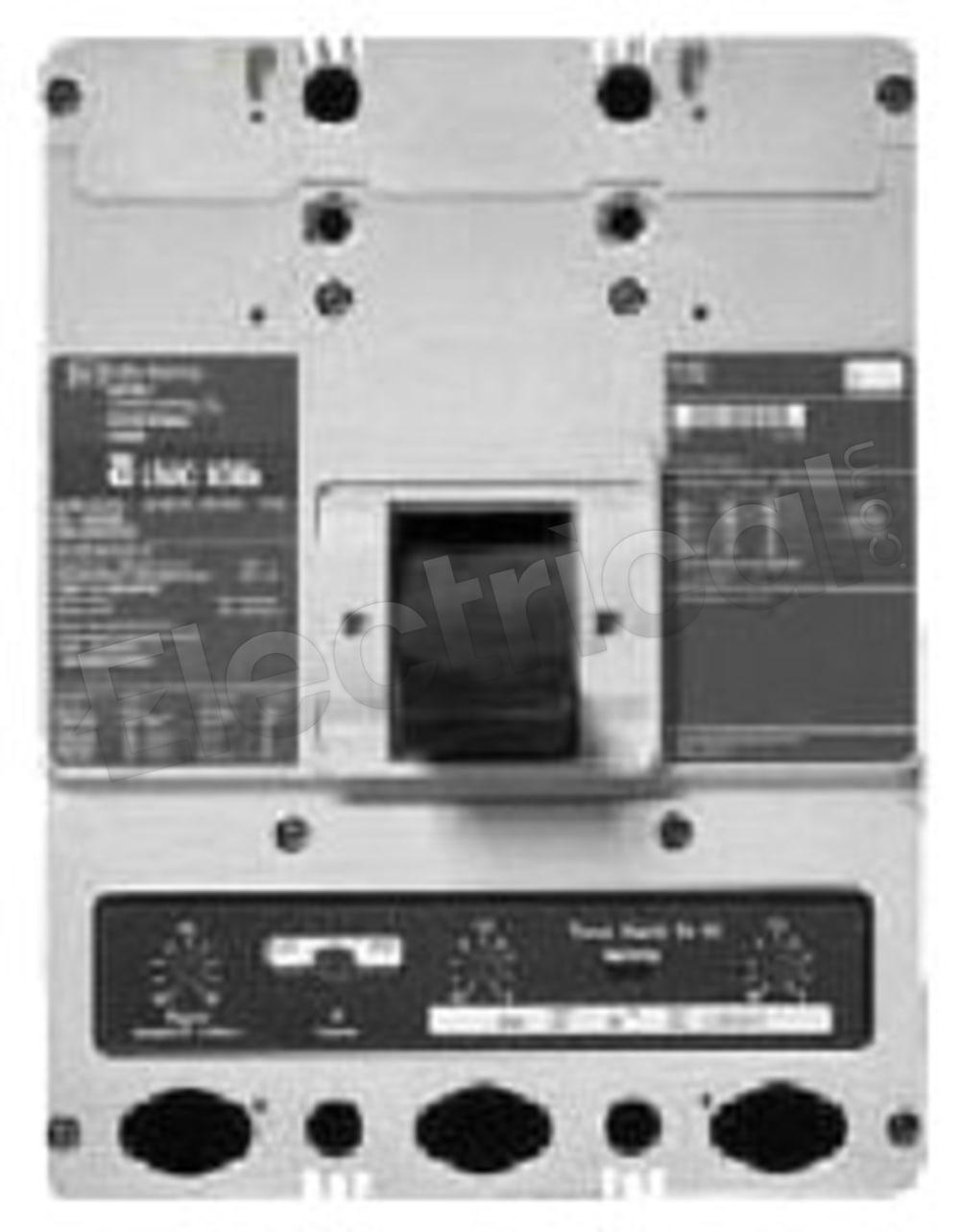

Westinghouse Molded Case HLW3500

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HLW3500 Specifications

View Specifications

HLW3500, Eaton, Cutler Hammer, Westinghouse, Series C, type HLW, 3P, 3PH, 500A, 690V, 70kA@415V, IEC rated, high interrupting capacity, Feed-Thru, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable Thermal Magnetic, molded case circuit breakers

Manufacturer
Westinghouse
Subcategory
Molded Case
Family
Series C
Amperage
500
Voltage
690
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HLW3500 Specifications:
Part NumberHLW3500
Manufacturers
Eaton, Cutler Hammer, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeHLW
UPC786679055922
Weight21 lbs
Amperage500
Voltage690
Poles3
AIC Rating70kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
