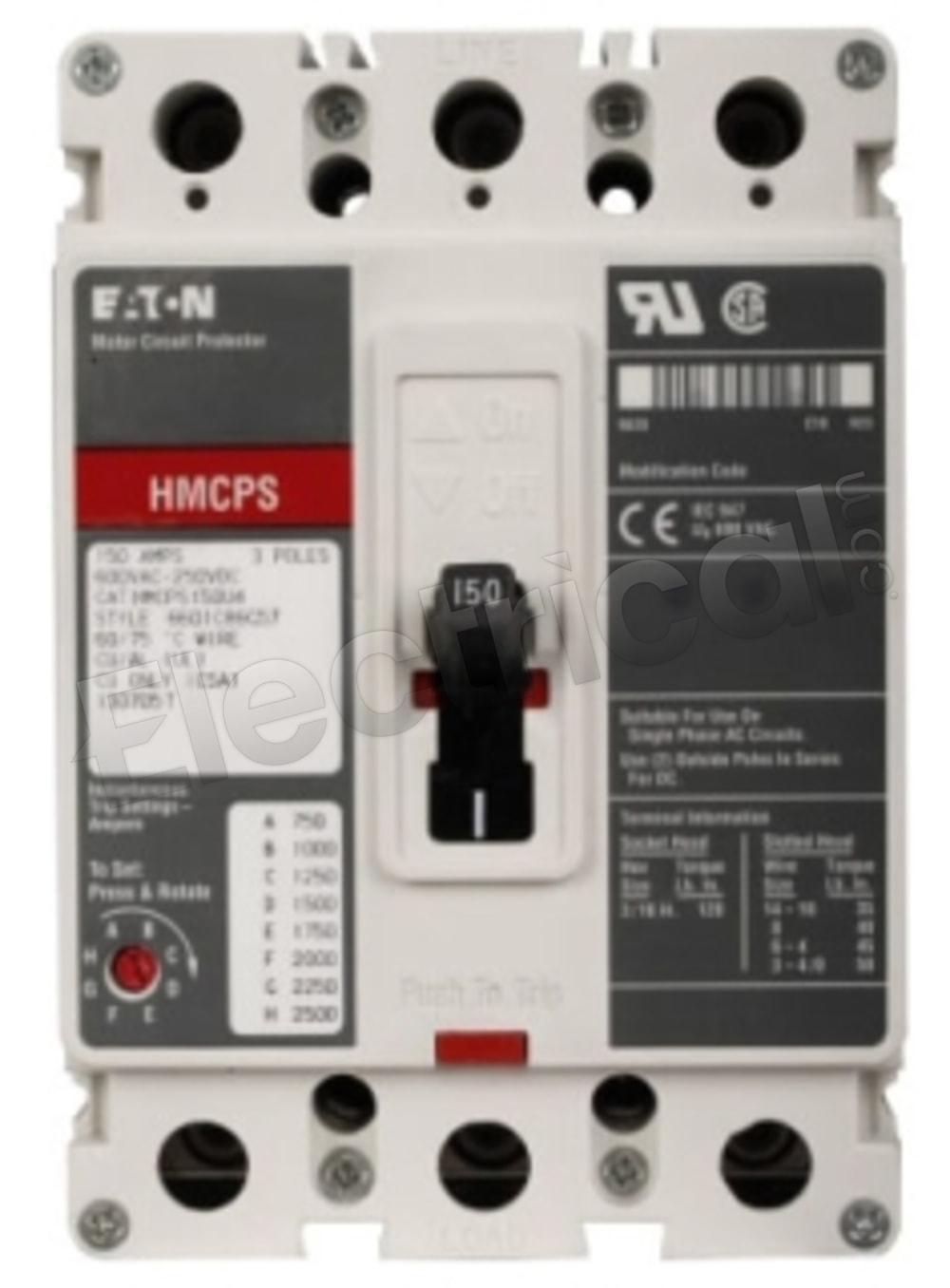

HMCPS007C0CA02
HMCPS007C0CA02
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HMCPS007C0CA02 Specifications
View Full SpecificationsView Specifications
HMCPS007C0CA02, Cutler Hammer, Eaton, Westinghouse, Series C, type HMCPS, F Frame, 3P, 3PH, 7A, 600V, 65kA@480V, Feed-Thru, complete with 1A/1B auxiliary switch, non-interchangeable trip with I - Instantaneous Protection Only, non-aluminum line & load side lug terminals, MCP, motor circuit protector for application with motor starters equipped with electronic overload relays, magnetic range 21-70A, motor FLA 1.5-5.7A, Magnetic Only, molded case circuit breakers
| Manufacturer | Westinghouse | Subcategory | Molded Case |
| Family | Series C | Amperage | 7 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Westinghouse | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 7 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
