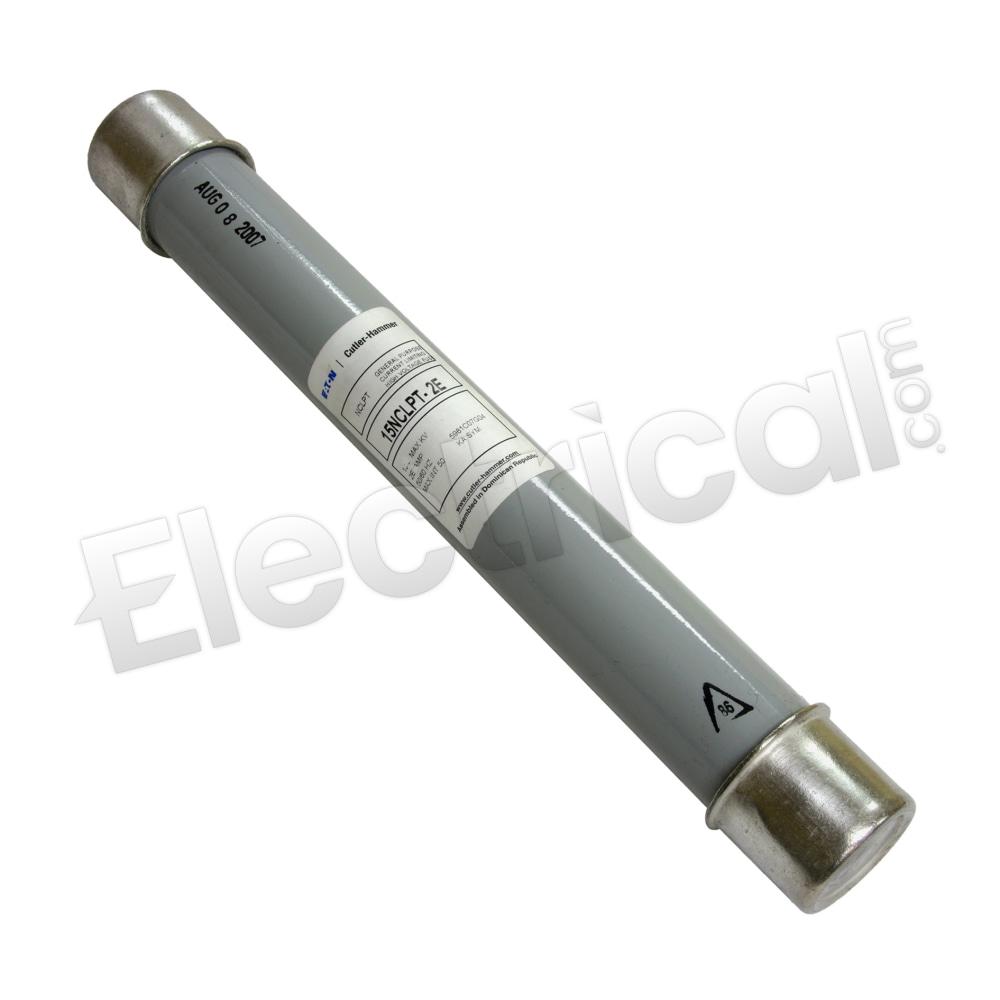

15NCLPT-2E
15NCLPT-2E
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
15NCLPT-2E Specifications
View Full SpecificationsView Specifications
15NCLPT-2E, Eaton, CLPT, class E, type NCLPT, current limiting fuse, non-indicating, 15.5kV Maximum (7.2 kV Nominal), 2A, 1 barrel, 1.62" diameter, 11.5" clip center, [email protected] AIC rating, medium voltage for non-disconnect and disconnect mounting
| Manufacturer | Eaton | Subcategory | Medium Voltage |
| Family | CLPT | Amperage Rating | 2 |
| Class Rating | E | Connection | Ferrule |
| Manufacturer | Eaton | ||
| Subcategory | Medium Voltage | ||
| Family | CLPT | ||
| Amperage Rating | 2 | ||
| Class Rating | E | ||
| Connection | Ferrule |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
15NCLPT-2E Specifications:
Part Number15NCLPT-2E
Manufacturers
Sub-CategoryMedium Voltage
FamilyCLPT
TypeNCLPT
UPC782116106417
Weight2.5 lbs
Amperage Rating2
Class RatingE
ConnectionFerrule
Voltage15500
Clip Center11.5
Barrels1
Diameter1.62
AIC Rating[email protected]
